ON Semiconductor ATP404-H-TL-H Product Overview

The ATP404-H-TL-H is a high-performance, automotive-grade power MOSFET from ON Semiconductor, designed to meet the rigorous standards of the automotive industry. This MOSFET is part of ON Semiconductor's extensive portfolio of energy-efficient devices, offering an optimal solution for various power management and switching applications within automotive systems.

Key Features

• Low On-Resistance: The device features a very low on-resistance (R<sub>DS(on)), which enhances its efficiency by minimizing power loss during operation.
• High-Temperature Performance: With an ability to operate at high temperatures, the ATP404-H-TL-H is suitable for demanding automotive environments, ensuring reliability under thermal stress.
• Single P-Channel: As a P-Channel MOSFET, it allows for simplified gate drive circuits compared to N-Channel MOSFETs, as it can be driven by a gate voltage that is referenced to the same potential as the source terminal.
• Automotive Grade: This product meets the AEC-Q101 standard for automotive reliability, making it a trustworthy choice for critical vehicle applications.

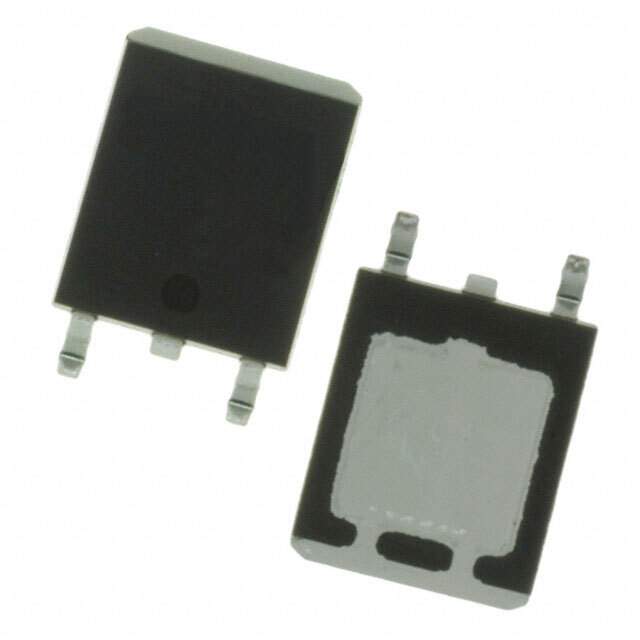

• Surface-Mount Package: The MOSFET comes in a compact surface-mount package, which is ideal for space-constrained applications.

Applications

The ATP404-H-TL-H is designed to address a wide range of applications within the automotive sector. Its robustness and efficiency make it particularly well-suited for:

• Powertrain systems
• Body control modules
• Infotainment systems
• LED lighting systems
• Motor control circuits

Quality and Support

ON Semiconductor is committed to providing high-quality products and support. The ATP404-H-TL-H is backed by the company's rigorous testing protocols and a comprehensive technical support system. Customers can count on ON Semiconductor's expertise for design-in assistance and ongoing product support.
