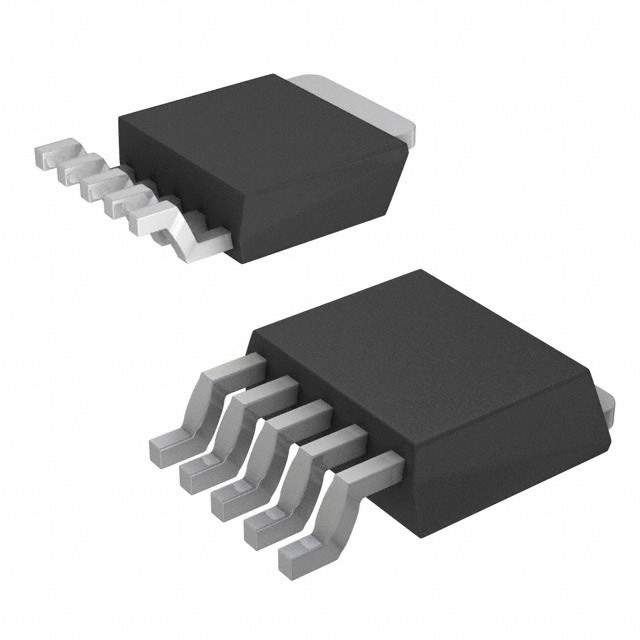

ON Semiconductor CAT6243DCADJ-RKG Voltage Regulator

The CAT6243DCADJ-RKG from ON Semiconductor is a high-performance CMOS linear voltage regulator designed to deliver a stable and adjustable output voltage, ensuring reliable operation for a wide array of electronic devices. This regulator is particularly suited for battery-powered applications due to its low dropout voltage and quiescent current, which help to extend battery life.

Key Features:

• Adjustable Output Voltage: The device provides an adjustable output voltage range, which can be set using external resistors. This flexibility allows for customization to meet the specific needs of various applications.
• High Accuracy: With its precise voltage regulation, the CAT6243DCADJ-RKG ensures that sensitive electronic circuits receive a consistent voltage, which is crucial for maintaining performance and reliability.
• Low Dropout Voltage: The low dropout feature enables the regulator to continue delivering a regulated output even when the supply voltage is very close to the output voltage, which is essential for maximizing battery life in portable devices.
• Thermal Protection: Built-in thermal shutdown protection safeguards the device from damage due to overheating, enhancing the overall durability and longevity of the regulator.
• Current Limiting: The current limiting feature prevents the regulator from delivering excessive current that could potentially harm the electronic components it powers.
• Low Quiescent Current: The device's low quiescent current minimizes power consumption when in standby mode, further contributing to the efficiency of the overall system.

Applications:

The CAT6243DCADJ-RKG is ideal for various applications, including but not limited to:

• Portable and battery-powered devices
• Microprocessor/ microcontroller power supplies
• Consumer electronics
• Wireless communication equipment
• Automotive electronics

With its combination of adjustability, efficiency, and protective features, the CAT6243DCADJ-RKG voltage regulator from ON Semiconductor is a versatile solution that meets the stringent requirements of modern electronic systems.
