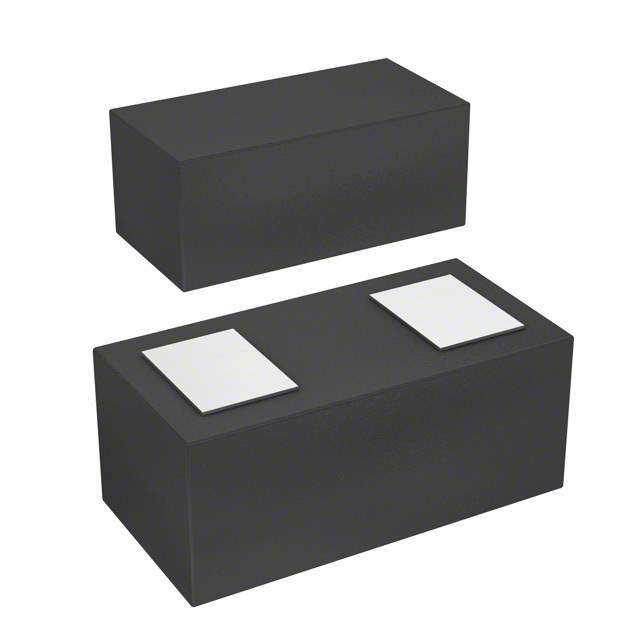

The CM1242-33CP is a robust ESD protection device designed by ON Semiconductor, a leading provider in the semiconductor industry. This product is engineered to safeguard high-speed data lines and other sensitive circuits from electrostatic discharge (ESD) that can cause irreversible damage to electronic components.

Key Features

• ESD Protection: The CM1242-33CP offers excellent ESD protection exceeding the IEC 61000-4-2 standard (Level 4), which means it can withstand ESD events of up to ±15kV (air discharge) and ±8kV (contact discharge).
• Low Capacitance: With a low loading capacitance of typically 0.8pF, this device is ideal for protecting high-speed data lines without significantly affecting signal integrity.
• Low Leakage Current: It ensures minimal power loss with a leakage current of less than 1µA, which is crucial for battery-powered devices.
• Multiple Channel Integration: The CM1242-33CP incorporates multiple ESD protection channels, making it a versatile solution for various applications.
• Small Package Size: The device comes in a compact SOT-23-6 package, optimizing board space and making it suitable for space-constrained applications.

Applications

The CM1242-33CP is widely used in protecting electronic circuits found in a variety of applications, including:

• USB 2.0 Power and Data Lines
• Mobile Phones and Portable Devices
• Digital Cameras and Audio Devices
• Notebook Computers
• Other High-Speed Data Interfaces

Reliability and Quality

ON Semiconductor is committed to delivering high-quality products, and the CM1242-33CP is no exception. It undergoes rigorous testing to ensure it meets the highest standards of reliability and performance. Customers can trust this ESD protection device to provide long-lasting protection for their sensitive electronic components.

Conclusion

The CM1242-33CP from ON Semiconductor is a compact, high-performance ESD protection solution that offers reliability and protection for a wide range of electronic applications. Its low capacitance, multi-channel integration, and adherence to stringent industry standards make it an essential component for any design requiring robust ESD protection.
