The CM1430-08DE is a high-performance, low-pass filter array integrating electrostatic discharge (ESD) protection circuitry for high-speed data interfaces. Manufactured by ON Semiconductor, a leading provider in the semiconductor industry, this component is designed to suppress unwanted EMI (electromagnetic interference) and provide robust ESD protection in a single, compact package.

Key Features

• Integrated ESD Protection: The CM1430-08DE offers ESD protection to IEC 61000-4-2 Level 4, safeguarding sensitive circuitry from electrostatic discharges that can cause irreparable damage.
• High-Frequency Filtering: With its low-pass filter design, this device effectively reduces EMI on high-speed data lines, ensuring signal integrity and compliance with regulatory standards.
• Channel Configuration: The component includes an 8-channel configuration, making it suitable for protecting multiple data lines while minimizing board space.
• Low Clamping Voltage: It features a low clamping voltage, which is crucial for protecting modern, low-voltage electronics from transient voltage spikes.
• Low Insertion Loss: The CM1430-08DE is designed to provide minimal signal attenuation, preserving the signal strength and quality across the data lines it protects.

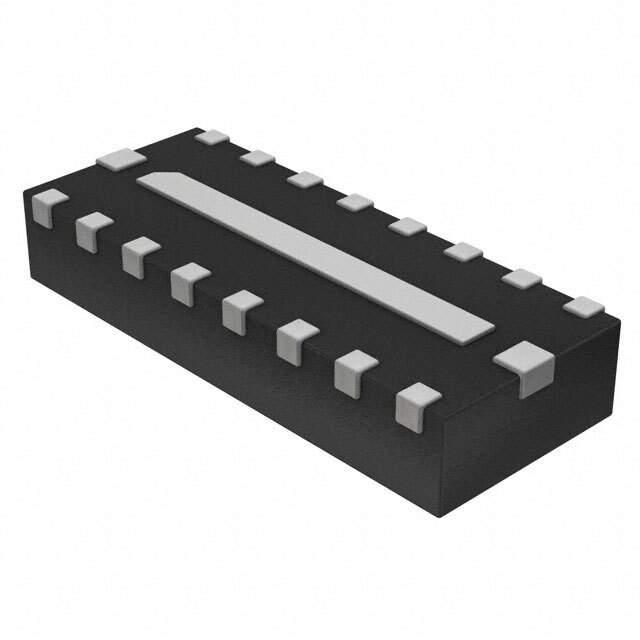

• Compact Package: Available in a space-saving micro lead-frame package (MLP), it is ideal for portable and space-constrained applications.

Applications

The CM1430-08DE is versatile and can be used in a variety of applications where data line protection and EMI filtering are required. It is particularly well-suited for:

• Mobile and Smart Phones
• Portable Electronics
• USB Interfaces
• Multimedia Devices
• Notebook and Desktop Computers

Technical Specifications

With a working voltage of 5V and an operating temperature range from -40°C to +85°C, the CM1430-08DE is built to perform reliably in a wide range of environments and applications. Its low-profile design and high integration level make it an excellent choice for designers looking to enhance EMI filtering and ESD protection without compromising on space or performance.
