ON Semiconductor CM1450-08CP Product Overview

The CM1450-08CP is a cutting-edge EMI filtering array with integrated ESD protection, designed and manufactured by ON Semiconductor, a leader in semiconductor solutions. This product is meticulously engineered to provide system-level solutions for the suppression of electromagnetic interference (EMI) while simultaneously offering robust electrostatic discharge (ESD) protection. This makes the CM1450-08CP an ideal choice for preserving signal integrity and extending the longevity of sensitive electronic components.

The device features eight channels of low-pass filter arrays, which are highly effective in attenuating unwanted EMI noise in the broad range of frequencies. These filters are specifically designed to be incorporated into interfaces that are susceptible to both conducted and radiated interference, such as USB ports, video lines, and other high-speed data interfaces.

In addition to its EMI filtering capabilities, the CM1450-08CP boasts integrated ESD protection that complies with the IEC61000-4-2 standard. This ESD protection is capable of withstanding contact discharges of up to ±15kV, thus ensuring that sensitive electronic equipment is safeguarded against the damaging effects of electrostatic discharges. This feature is particularly critical for devices that are frequently handled by users, where the risk of ESD events is significantly heightened.

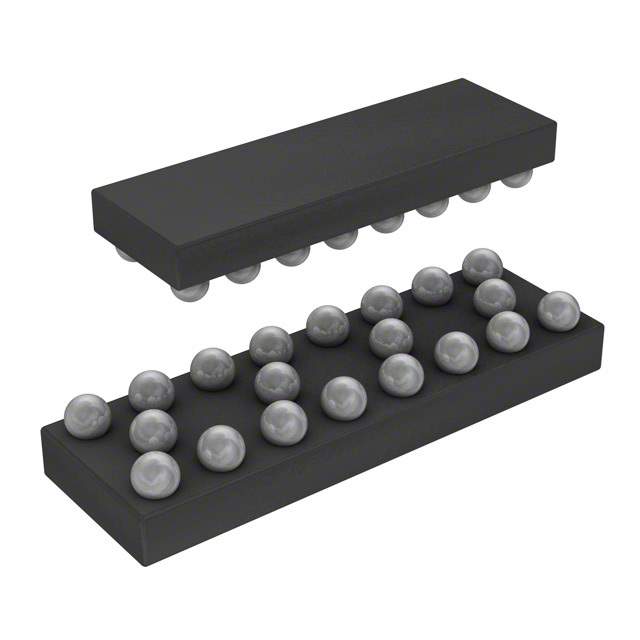

The CM1450-08CP is housed in a compact, lead-free, RoHS-compliant package, making it suitable for space-constrained applications. The product is also characterized by its low insertion loss and low clamping voltages, which contribute to minimal impact on signal quality while providing effective transient protection.

ON Semiconductor's commitment to quality and performance is evident in the CM1450-08CP, making it a trusted choice for designers looking to enhance the EMI/RFI and ESD robustness of their electronic systems. With its combination of advanced filtering and protection features, the CM1450-08CP stands out as a comprehensive solution for maintaining the integrity and reliability of electronic devices in today's interconnected and fast-paced technological landscape.
