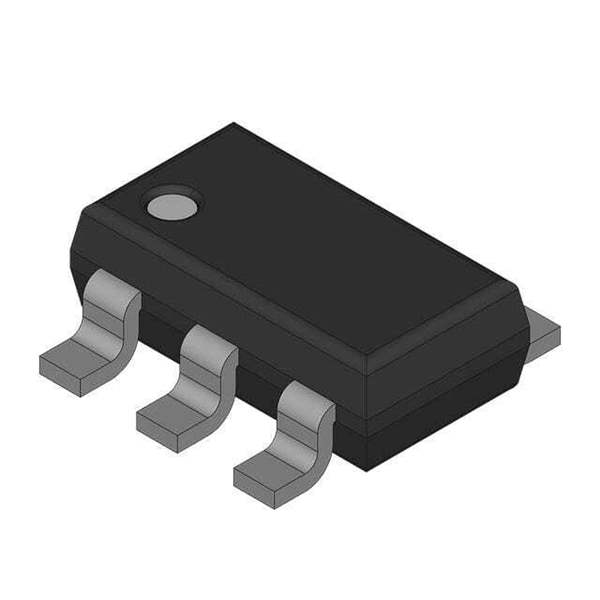

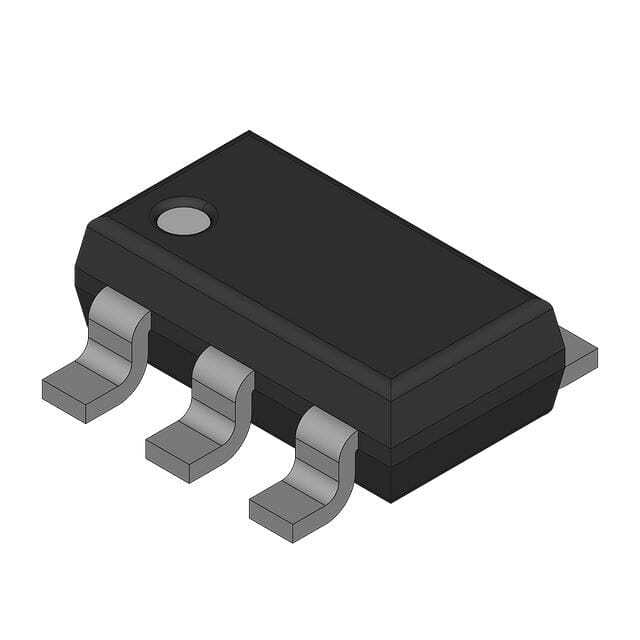

ON Semiconductor CPH6202-TL-E P-Channel MOSFET

The ON Semiconductor CPH6202-TL-E is a high-performance P-Channel MOSFET that offers efficient power management and switching capabilities for a wide range of electronic applications. This semiconductor device is designed to meet the stringent requirements of modern electronic circuits, providing a reliable solution for power conversion and regulation tasks.

Key Features:

• Device Type: P-Channel MOSFET
• Configuration: Single
• Drain-Source Voltage (Vdss): -20V
• Current - Continuous Drain (Id) @ 25°C: -6A
• Rds On (Max) @ Id, Vgs: 45 mOhm @ -4A, -4.5V
• Gate Charge (Qg) (Max) @ Vgs: 14nC @ -4.5V
• Input Capacitance (Ciss) (Max) @ Vds: 680pF @ -10V
• Power Dissipation (Pd): 1W
• Operating Temperature: -55°C ~ 150°C
• Mounting Type: Surface Mount
• Package / Case: CPH3
• Supplier Device Package: CPH3
• Lead Free Status / RoHS Status: Lead free / RoHS Compliant

Applications:

The CPH6202-TL-E is ideal for various applications where efficient power control is essential. It can be used in:

• Power supply circuits
• DC/DC converters
• Motor drives
• Load switches
• Battery management systems
• Portable electronic devices

Benefits:

With its low on-resistance and high switching speed, the CPH6202-TL-E provides reduced conduction losses and improved overall efficiency, making it a suitable choice for power-intensive applications. Its compact CPH3 package allows for space-saving designs, and its robust thermal performance ensures reliability even under challenging operating conditions.

Quality and Environmental Compliance:

ON Semiconductor is committed to providing environmentally friendly products. The CPH6202-TL-E is manufactured with lead-free materials and is compliant with the RoHS directive, ensuring minimal environmental impact and safe use in consumer electronics.
