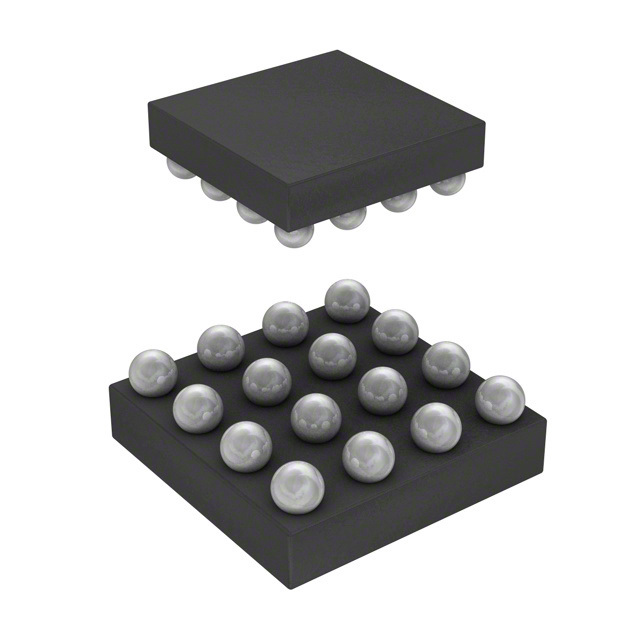

Introducing the FAN48630UC33X from ON Semiconductor

The FAN48630UC33X is a cutting-edge, tiny, integrated synchronous boost converter from ON Semiconductor, specifically designed to meet the power management requirements of the latest portable and wearable devices. This innovative component is engineered to provide a high-efficiency power conversion, which is essential for extending battery life and ensuring consistent performance in compact electronics.

Key Features of the FAN48630UC33X

• High Efficiency: The device boasts a high efficiency of up to 96%, which is achieved through the integration of a low resistance N-Channel MOSFET and a P-Channel synchronous rectifier.
• Compact Size: With a small footprint, the FAN48630UC33X is ideal for space-constrained applications. Its compact form factor makes it a perfect fit for portable devices where real estate is at a premium.
• Adjustable Output Voltage: The output voltage is adjustable, providing design flexibility and the ability to tailor the power supply to the specific needs of the application.
• Integrated Protections: The device features built-in over-temperature and over-current protection, ensuring reliable operation and safeguarding the device and the system it powers from potential damage.

Applications

The FAN48630UC33X is suitable for a wide variety of applications, including but not limited to:

• Smartphones and Tablets
• Portable Media Players
• Wearable Devices
• Wireless Headsets and Earbuds
• Smart Watches
• Health and Fitness Monitors

Technical Specifications

The FAN48630UC33X operates over a wide input voltage range from 2.5V to 5.5V, making it versatile for use with various battery technologies. The device can deliver a continuous output current of up to 3A, ensuring ample power for demanding applications. Its adjustable output voltage can be set from 3.3V up to 5.1V, allowing designers to optimize performance for their specific circuit requirements. Moreover, the converter employs a 1.2MHz fixed switching frequency, which helps to minimize the size of external components.

In summary, the FAN48630UC33X from ON Semiconductor is a high-efficiency, flexible, and compact power solution that is an ideal choice for designers looking to enhance the power management system of their next-generation portable and wearable devices.
