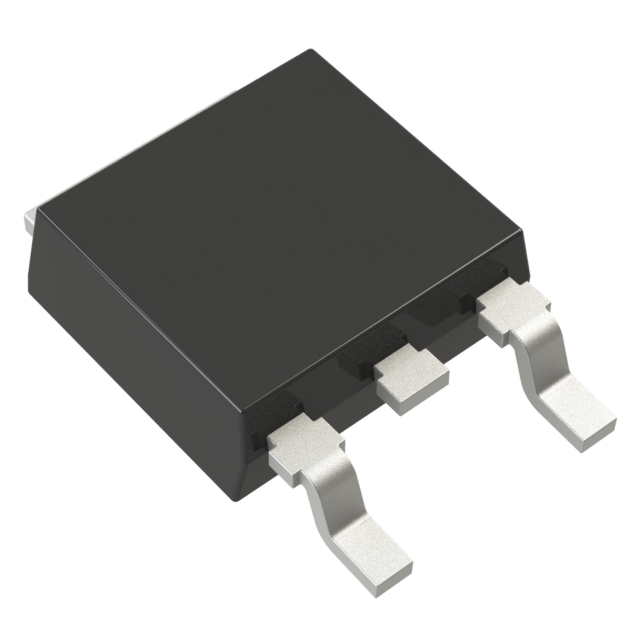

Same model may have multiple batches, images only for reference.

FDD5810-F085

Name: FDD5810-F085
Brand: ON Semiconductor
SKU: WS1340240
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	FDD5810-F085
Manufacturer	ON Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 60V 7.4A/37A DPAK
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Package	Tape & Reel (TR);Cut Tape (CT);
Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	7.4A (Ta), 37A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	22mOhm @ 32A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	34 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1890 pF @ 25 V
Power Dissipation (Max)	72W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Grade	Automotive
Qualification	AEC-Q101
Mounting Type	Surface Mount
Supplier Device Package	TO-252AA
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Ultra Librarian 3D Model	Ultra Librarian FDD5810-F085 CAD Model
