ON Semiconductor FDMA86151L P-Channel PowerTrench® MOSFET

The FDMA86151L is a high-performance, P-channel PowerTrench® MOSFET designed by ON Semiconductor, a leader in energy-efficient innovations. This MOSFET is a part of their extensive portfolio of power management devices, tailored for power switching applications where high efficiency is paramount.

Key Features

• Low On-Resistance: The device features an exceptionally low on-resistance (R<sub>DS(on)) of 8.4 mΩ at V<sub>GS = -10 V, which translates to reduced conduction losses and improved overall efficiency in applications.
• High Power Dissipation: With a power dissipation of 48 W, the FDMA86151L is capable of handling high currents, making it suitable for demanding power applications.
• Advanced PowerTrench® Technology: This technology enables the MOSFET to have a very low gate charge (Q<sub>G), low gate-to-drain charge (Q<sub>GD), and a fast switching performance, which are critical for high-efficiency power supplies.
• High Threshold Voltage: A threshold voltage (V<sub>th) of -2.0 V ensures that the MOSFET remains off until the gate-source voltage reaches the necessary level, preventing unintentional turn-ons.

Applications

The FDMA86151L is ideal for a wide range of power management tasks, especially in portable and battery-powered devices where energy efficiency is crucial. Its typical applications include:

• Load switches
• Power management in portable devices
• DC/DC conversion
• Battery protection circuits
• Power amplifiers

Package and Reliability

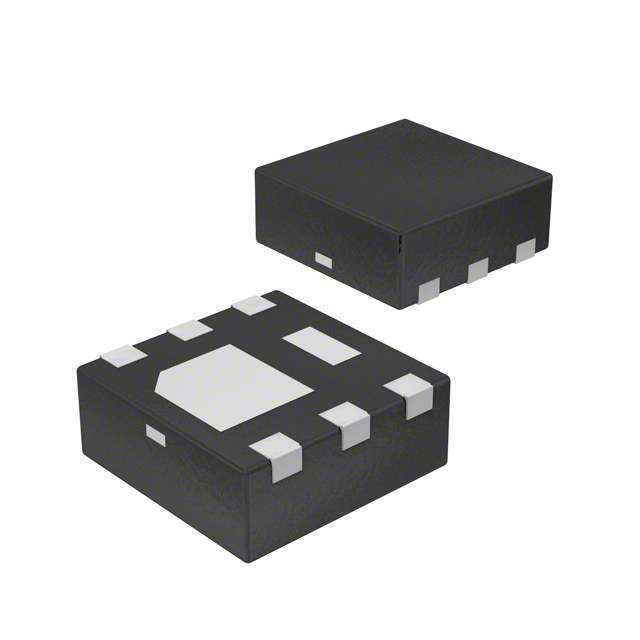

Encased in a compact 6-pin MLP package, the FDMA86151L offers a space-saving solution without compromising on power and performance. The device also meets ON Semiconductor's stringent quality and reliability standards, ensuring long-term stability and performance in various operating conditions.

Environmental Compliance

ON Semiconductor is committed to environmental stewardship. The FDMA86151L is RoHS compliant, reflecting the company's dedication to reducing the environmental impact of its products.
