ON Semiconductor FDMC86160 PowerTrench® MOSFET

The FDMC86160 is a state-of-the-art N-Channel PowerTrench® MOSFET designed and manufactured by ON Semiconductor. This highly efficient power MOSFET is optimized for power switching applications, offering a perfect blend of low on-resistance and low gate charge, resulting in outstanding performance in power management tasks. With its advanced technology, the FDMC86160 is a reliable and robust solution for a wide range of electronic devices.

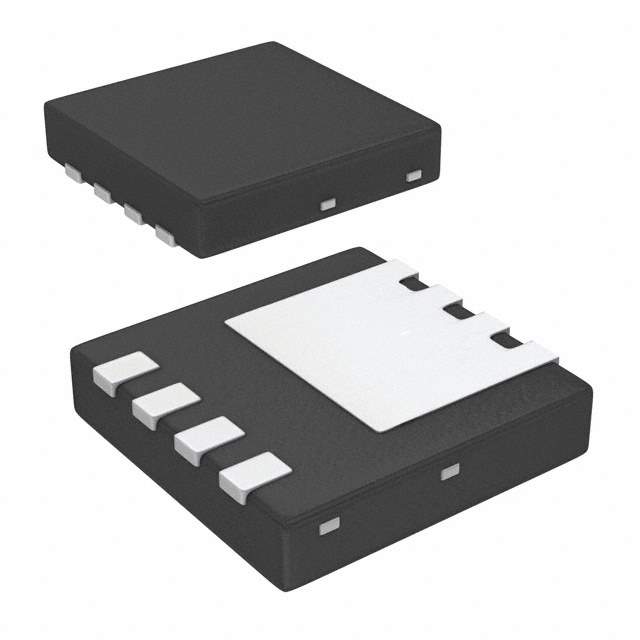

This device is encapsulated in a compact 8-MLP (5x6) package, which is designed to provide a small footprint while maintaining excellent thermal performance. The FDMC86160 boasts an R<sub>DS(on) of just 2.5 mΩ at V<sub>GS = 10 V, which significantly reduces conduction losses and improves overall efficiency. The low gate charge (Q<sub>g) and capacitance (C<sub>iss) further enhance the device's swift switching capabilities, making it ideal for high-frequency applications.

The FDMC86160 is characterized by its high continuous drain current (I<sub>D) of 47 A, which allows it to handle high current loads with ease. It is also noteworthy for its robustness, withstanding a maximum drain-source voltage (V<sub>DSS) of 100 V, providing ample headroom for voltage spikes and surges commonly encountered in electronic circuits.

One of the key features of the FDMC86160 is its PowerTrench® technology, which is engineered to minimize on-state resistance while maintaining superior switching performance, thus reducing both static and dynamic power losses. This technology also enhances the device's thermal characteristics, ensuring reliable operation even under high temperature conditions.

ON Semiconductor has equipped the FDMC86160 with ESD protection, ensuring the device's longevity and stability in environments prone to electrostatic discharge. It is RoHS compliant and halogen-free, reflecting ON Semiconductor's commitment to environmental sustainability.

In conclusion, the FDMC86160 from ON Semiconductor is an excellent choice for designers looking for a high-performance, energy-efficient N-Channel MOSFET. Whether it's for power supply applications, DC-DC converters, or motor drives, the FDMC86160 delivers top-notch performance and reliability, making it a valuable component in any power management system.
