Products specifications

Categories Integrated Circuits
Manufacturer ON Semiconductor
Packaging Reel
Status Obsolete
Switch Type General Purpose
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Load Voltage (V) 4.5V ~ 20V
Supply Voltage Not Required
Current - Output (Maximum) 2A
Rds On 230mOhm
Input Type Non-Inverting
Fault Protection Current Limiting (Adjustable), Over Temperature, UVLO
Temperature Range - Operating -40°C ~ 85°C

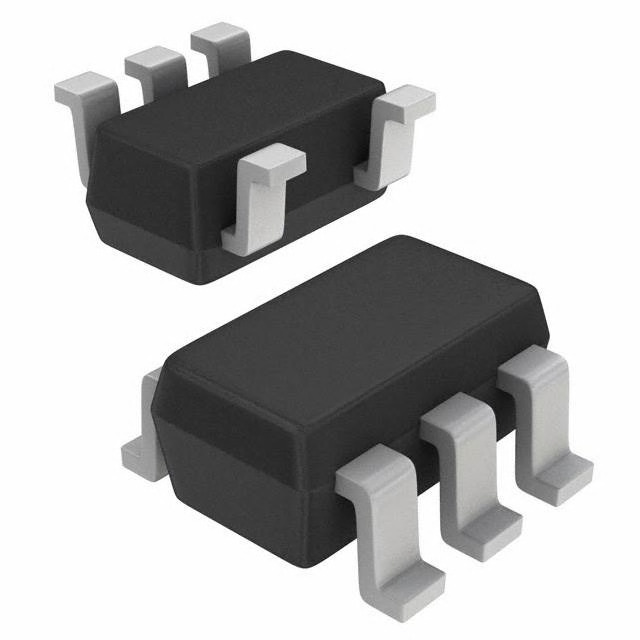

Manufacturer Package SC-74A, SOT-753
Supplier Device Package SOT-23-5
Family Part Number FPF2502
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 710200-FPF2502
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FPF2502 CAD Model

Description

ON Semiconductor FPF2502: Advanced Load Management Switch

The ON Semiconductor FPF2502 is a sophisticated load management switch designed to provide a multitude of protection features for general-purpose applications. This integrated circuit is part of ON Semiconductor's IntelliMAX™ product line and is specifically engineered to enhance system reliability and safeguard sensitive electronic components.

Key Features

  • Current Limiting: The FPF2502 offers programmable current limiting to prevent damage due to overcurrent conditions. This feature is critical for preventing thermal stress and potential failure of electronic devices.
  • Thermal Shutdown: With a built-in thermal shutdown mechanism, the device automatically turns off when it reaches a temperature threshold, ensuring protection against overheating.
  • Under-Voltage Lockout (UVLO): The UVLO feature ensures that the switch does not operate at dangerously low voltages, which could otherwise lead to erratic system behavior or damage.
  • Controlled Rise Time: To minimize inrush current, the FPF2502 provides a controlled rise time, reducing the stress on power sources and other components during power-up sequences.
  • Fast Overcurrent Response: The device is capable of responding swiftly to overcurrent events, ensuring quick protection and minimizing the risk of damage.

Applications

The FPF2502 is versatile and can be utilized in a variety of applications where load management and protection are paramount. It is particularly suitable for:

  • Portable and battery-powered devices
  • Hot-swap operations
  • Industrial and medical equipment
  • Consumer electronics

Technical Specifications

The FPF2502 operates over a wide voltage range and offers a compact solution with a low on-resistance. Its technical specifications include:

  • Operating Voltage Range: 2.8V to 5.5V
  • On-Resistance (R<sub>ON): Typically 92mΩ
  • Maximum Continuous Current: Up to 1.5A
  • Adjustable Current Limit: From 150mA to 1.5A
  • Package: Available in a space-saving 6-pin µDFN package

The FPF2502 is an ideal solution for designers seeking to incorporate load management and protection features with minimal additional components. Its advanced protection capabilities and compact form factor make it a reliable choice for a wide range of power management applications.
