ON Semiconductor FSBB15CH120D Smart Power Module

The ON Semiconductor FSBB15CH120D is a cutting-edge Smart Power Module (SPM) that is part of the Motion SPM® 3 series. This module is specifically designed to drive three-phase brushless DC motors in a variety of applications, including home appliances, industrial motor drives, and air conditioners. Its compact footprint and high level of integration make it an excellent choice for designers looking to reduce system size and improve overall reliability.

With a 1200V and 15A rating, the FSBB15CH120D is capable of handling high power levels, making it suitable for a wide range of high-performance applications. The module integrates insulated gate bipolar transistors (IGBTs), freewheeling diodes, and an optimized gate drive circuit to provide efficient power conversion with minimal losses.

One of the standout features of this Smart Power Module is its built-in temperature monitoring and over-current protection, which enhances the safety and durability of the module. Additionally, the FSBB15CH120D includes under-voltage lockout and short-circuit protection to prevent damage from electrical anomalies. This focus on protection ensures that the module can deliver reliable performance over its lifespan.

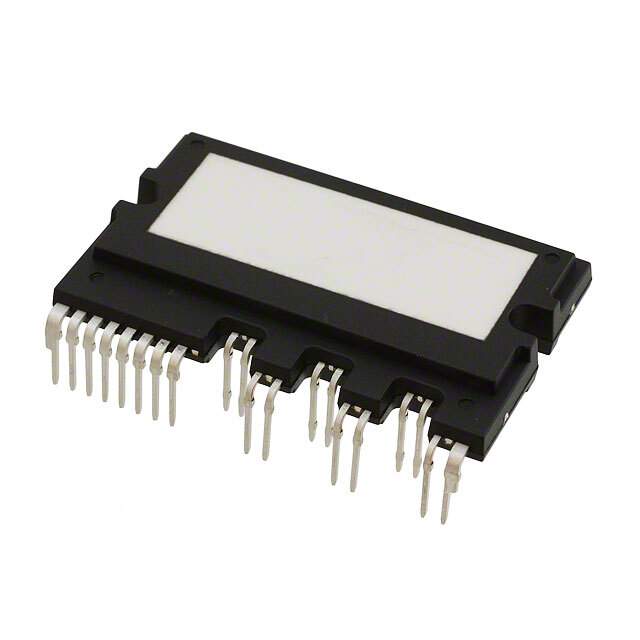

The FSBB15CH120D is housed in a rugged DIP package that is designed for optimal thermal performance. The package allows for simplified PCB layout and easier assembly processes, reducing manufacturing costs and time to market. The module's pin configuration is also designed for easy interfacing with microcontrollers, making it a user-friendly option for engineers.

Overall, the ON Semiconductor FSBB15CH120D Smart Power Module represents a highly integrated solution that combines efficiency, reliability, and ease of use. Its advanced features and robust design make it an ideal choice for driving three-phase motors in a range of demanding applications.

• Voltage Rating: 1200V
• Current Rating: 15A
• Three-phase IGBT inverter bridge
• Built-in temperature monitoring and protection features
• Under-voltage lockout and short-circuit protection
• Optimized for thermal performance
• Easy PCB layout and assembly
• Compatible with microcontroller interfacing
