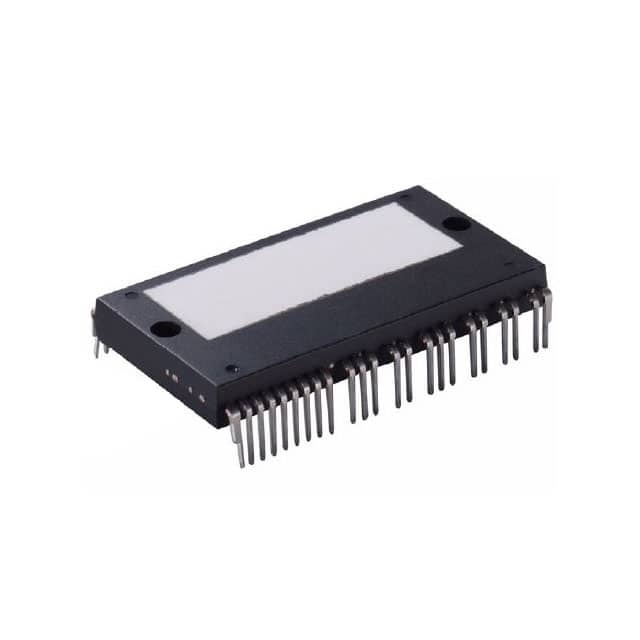

ON Semiconductor FSBM15SH60 Smart Power Module

The ON Semiconductor FSBM15SH60 is a cutting-edge Smart Power Module (SPM) designed for high-efficiency applications requiring a compact and reliable motor control solution. This advanced module is a part of ON Semiconductor's innovative SPM portfolio, tailored to meet the demands of modern energy-saving and environmentally friendly systems.

This versatile module integrates multiple components within a single package, including IGBTs, freewheeling diodes, and a gate-drive circuit. The integration of these components not only simplifies the design process but also enhances performance by reducing power losses and improving thermal management.

The FSBM15SH60 is capable of delivering up to 15A of continuous current, making it suitable for a wide range of applications such as air conditioners, refrigerators, washing machines, and other home appliances, as well as industrial motor drives. Its 600V rating allows it to handle high-voltage operations with ease, ensuring compatibility with various electrical systems.

One of the key features of the FSBM15SH60 is its built-in over-current protection, which safeguards the module from potential damage caused by excessive current flow. This adds an extra layer of reliability and extends the lifespan of the module. Additionally, the module comes with an over-temperature protection feature, which prevents overheating and ensures safe operation under various conditions.

The compact design of the FSBM15SH60, with its industry-standard footprint, allows for easy integration into existing designs without the need for significant layout changes. The module's Direct Bonded Copper (DBC) substrate provides excellent thermal conductivity, which is crucial for maintaining performance and reliability during extended periods of operation.

Overall, the ON Semiconductor FSBM15SH60 Smart Power Module represents a highly integrated, efficient, and robust solution for designers looking to optimize their motor control systems. It offers a blend of advanced protection features, high performance, and ease of use, making it an ideal choice for a multitude of applications.
