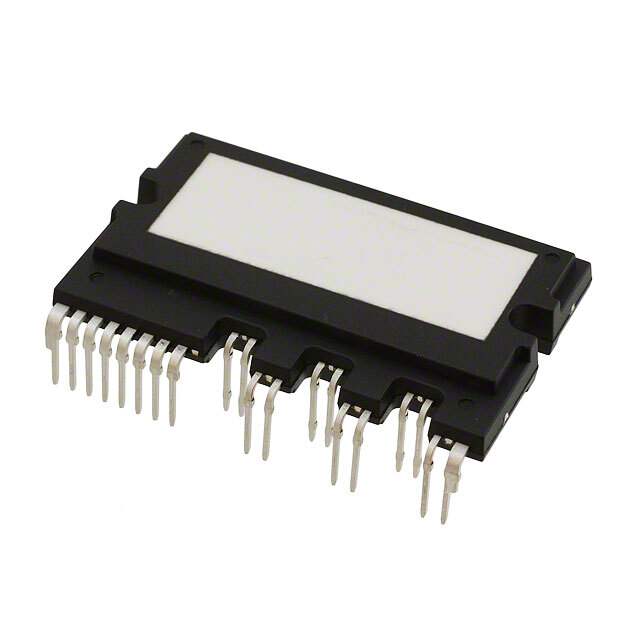

FPAB20BH60B Real Image
Same model may have multiple batches, images only for reference.

FPAB20BH60B

Part No FPAB20BH60B
Manufacturer Fairchild/ON Semiconductor
Catalog Power Drivers - Modules
Description PFC SPM 3 Series for Single-Phase Boost PFC / MODULE SPM 600V 20A SPMIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Status Active
Type IGBT
Configuration 1 Phase
Current 20A
Voltage 600V
Isolation Voltage 2500Vrms
Dimension 27-PowerDIP Module (1.205", 30.60mm)
Win Source Part Number 204259-FPAB20BH60B
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 60
Family Name FPAB20BH60B
Introduction Date April 07, 2010
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian FPAB20BH60B CAD Model

Description

The FPAB20BH60B is an electronic component manufactured by Fairchild/ON Semiconductor. It is a high-popularity component with a limited supply and demand status. The Win Source Part Number for this component is 204259-FPAB20BH60B. It is an IGBT type component with a voltage of 600V and a current of 20A. This component is commonly used in discrete semiconductor products.
