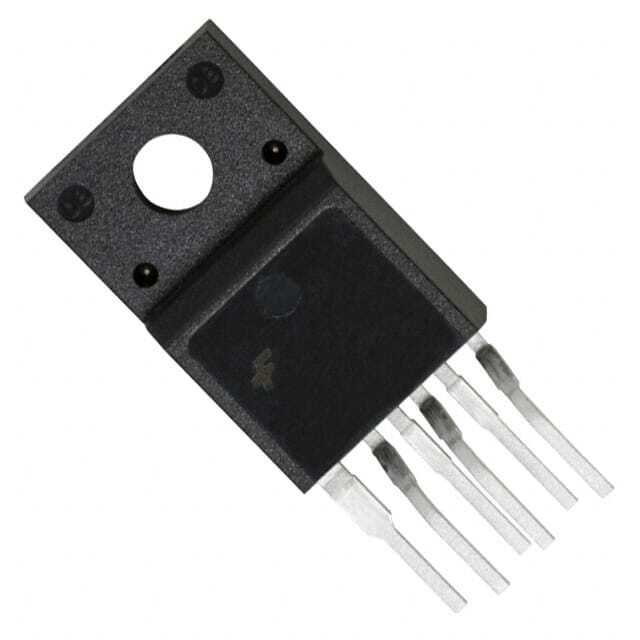

The FSGM0565RBLDTU from ON Semiconductor is a high-performance power switch designed for AC-DC power supplies and offers a robust solution for efficient power management. This component is part of the Green Mode Fairchild Power Switch (FPS™) series, which is renowned for its integration of a Pulse Width Modulation (PWM) controller and a high-voltage power MOSFET in one package.

Key Features

• High Efficiency: The FSGM0565RBLDTU incorporates ON Semiconductor's proprietary green mode function, which provides excellent efficiency at light load conditions by reducing switching losses.
• Advanced Burst-Mode Operation: This feature significantly lowers power consumption by reducing the input power requirement to less than 1W during standby mode.
• Integrated Protections: The device includes various protection features such as Overload Protection (OLP), Over Voltage Protection (OVP), Thermal Shutdown (TSD), and Under Voltage Lockout (UVLO), ensuring safe operation under abnormal conditions.
• Wide Operating Frequency: The operating frequency decreases linearly from a typical value of 67kHz at no load to a reduced switching frequency under light-load conditions, minimizing audible noise and reducing EMI.

Applications

The FSGM0565RBLDTU is ideal for a range of applications including:

• Switch Mode Power Supplies (SMPS)
• Adapters for Chargers
• Auxiliary Power Supplies for PCs, TVs, and Home Appliances

Product Specifications

With the FSGM0565RBLDTU, ON Semiconductor offers an advanced power solution that combines energy efficiency, reliability, and safety for a wide variety of power supply applications. Its comprehensive feature set is designed to meet the stringent requirements of today's energy-conscious electronics, ensuring both performance and sustainability.
