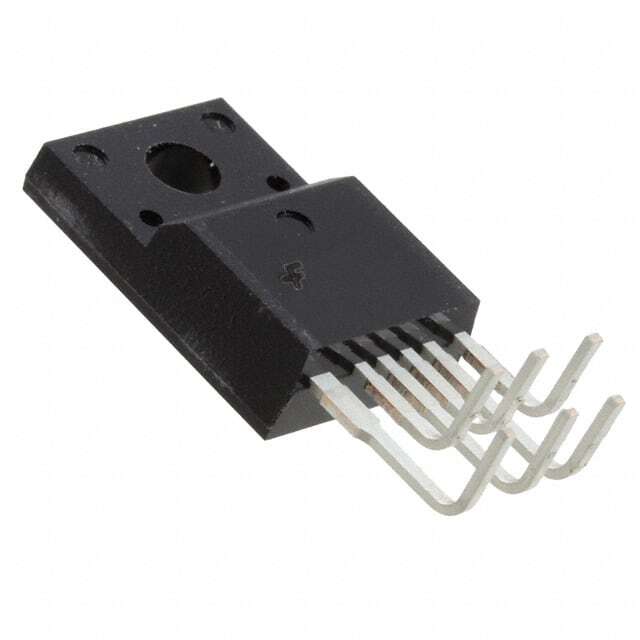

The FSQ0765RSLDTU from ON Semiconductor is a highly integrated power switch designed for high-efficiency power management and supply applications. This device is part of ON Semiconductor's Fairchild Power Switch (FPS) product line, which is renowned for providing energy-efficient, reliable performance in a compact form factor.

Key Features

• Integrated Power MOSFET: The device includes an integrated high-voltage power MOSFET with a low on-resistance, ensuring efficient power conversion and minimal heat generation.
• Advanced Burst-Mode Operation: For improved efficiency under light-load conditions, the FSQ0765RSLDTU features an advanced burst-mode operation that significantly reduces standby power consumption.
• Precision Fixed Operating Frequency: With a fixed operating frequency, the device enables designers to optimize their magnetic and filter components, resulting in reduced system cost and complexity.
• Over-Voltage Protection (OVP): The built-in OVP ensures that the power switch remains protected against voltage spikes, enhancing the reliability and longevity of the application.
• Over-Load Protection (OLP): The OLP feature automatically shuts down the operation when an overload condition is detected, preventing potential damage to the device and the system it powers.
• Internal Thermal Shutdown: The device includes a thermal shutdown feature that provides protection against excessive temperature conditions.
• Auto-Restart Mode: In the event of a fault condition, the FSQ0765RSLDTU automatically enters auto-restart mode, which helps to ensure the system's continued reliability without manual intervention.

Applications

The FSQ0765RSLDTU is suitable for a wide range of applications, including:

• Switch Mode Power Supplies (SMPS)
• Adapters and Chargers
• LED Lighting Drivers
• Consumer Electronics
• Standby and Auxiliary Power Supplies

With its combination of features, the FSQ0765RSLDTU offers a versatile solution for power management challenges. Its robust design and comprehensive protection features make it a reliable choice for designers looking to enhance the efficiency and safety of their power supply systems.
