The ON Semiconductor HCPL2530M is a high-speed optocoupler designed to provide electrical isolation between input and output circuits with an isolation voltage of 5000Vrms. This robust component is a dual-channel optocoupler, which means it contains two independent optically coupled channels within a single package, enhancing its functionality and application scope.

Key Features

• High Isolation Voltage: With a guaranteed isolation voltage of 5000Vrms, the HCPL2530M offers excellent protection against high voltage transients and electrical noise.
• Dual-Channel Configuration: The two channels can be used independently, providing design flexibility and the ability to control two separate circuits simultaneously.
• Fast Switching Times: The optocoupler features a propagation delay time of only 500ns, making it suitable for high-speed signal transmission.
• High Linearity: The linear optocoupler provides a high degree of linearity between the input and output, which is ideal for analog signal isolation.
• Wide Operating Temperature Range: It operates within a temperature range of -55°C to +100°C, ensuring reliability in a broad range of environments.
• Compatibility: The HCPL2530M is compatible with TTL, LSTTL, and CMOS logic and can directly interface with other standard logic families.

Applications

The HCPL2530M is used in various applications that require high-speed data transmission and electrical isolation. These include:

• Isolated line receivers
• Microprocessor system interfaces
• Power supply regulators
• Digital isolation for A/D, D/A conversion
• Switching power supplies
• Instrumentation input/output isolation
• Ground loop elimination

Package and Quality

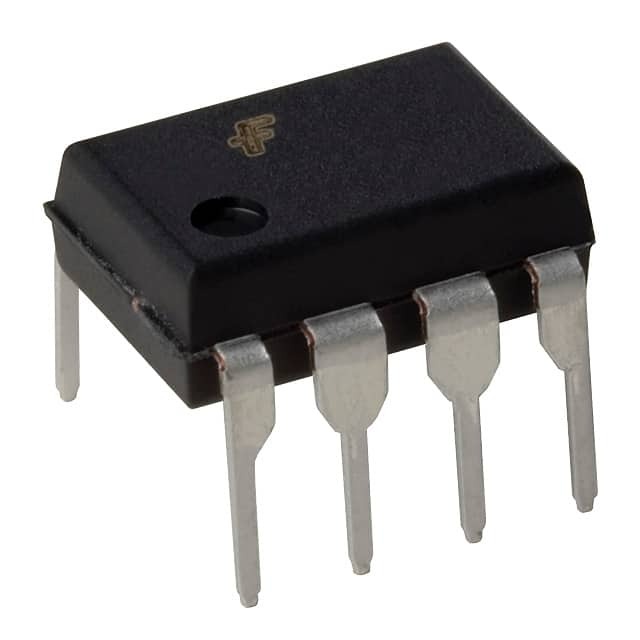

The HCPL2530M comes in an 8-pin DIP package, ensuring easy integration into existing circuit designs. ON Semiconductor is committed to high-quality standards, and this optocoupler is no exception. It is designed to meet stringent industry requirements, ensuring reliability and performance for critical applications.
