Products specifications

Categories Integrated Circuits (ICs)
Manufacturer ON Semiconductor
Packaging Tube
Motor Type - Stepper Bipolar
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface Parallel, Serial
Technology Bipolar
Applications General
Output Current 1A
Operating Supply Voltage 3 V ~ 3.6 V, 4.5 V ~ 5.5 V
Voltage - Load 10 V ~ 45 V
Operating Temperature Range -25°C ~ 85°C (TA)
Mounting Style Through Hole
Package 28-SDIP (0.500", 12.70mm) Exposed Pad
Manufacturer Package 28-HDIP
Win Source Part Number 778297-LB11946-E
Popularity Medium
Supply and Demand Status Limited
Family Name LB11946
Introduction Date February 19, 2009
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life

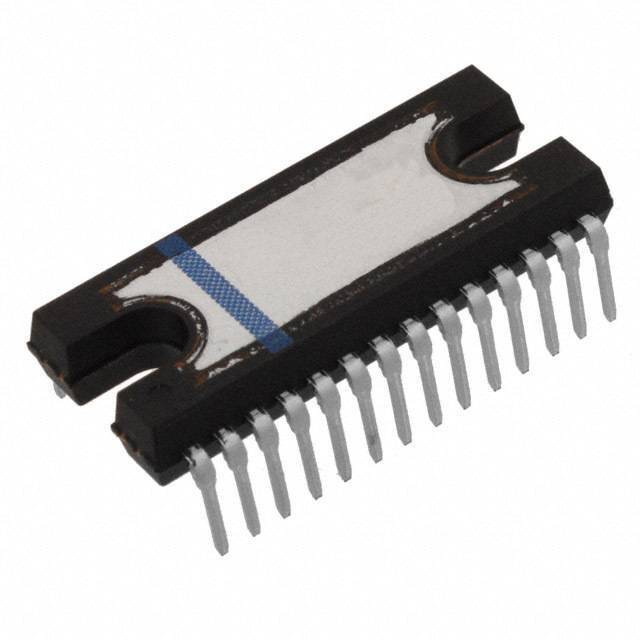

Ultra Librarian 3D Model Ultra Librarian LB11946-E CAD Model

Description

The ON Semiconductor LB11946-E is a high-performance, single-phase bipolar drive motor driver IC that is specifically designed to cater to the needs of modern, compact, and efficient motor driving applications. This versatile component is an ideal choice for driving a variety of motor types, including fan motors, small cooling fans, and other single-phase motors that require precise control and reliable operation.

The LB11946-E boasts an operating voltage range of 4.5V to 5.5V, making it suitable for use in low-voltage applications, such as battery-powered devices. It also features a built-in Hall sensor amplifier, which simplifies the motor control circuit and reduces the number of external components required. This integration not only saves space on the PCB but also contributes to a reduction in overall system costs.

With its high output current capability, the LB11946-E can drive motors with currents up to 0.9A (1.2A peak), ensuring that it can handle a wide range of motor sizes and performance requirements. Additionally, the IC incorporates thermal shutdown circuitry that protects the device from overheating, enhancing the reliability and longevity of both the motor driver and the motor itself.

The LB11946-E features a simple and intuitive control interface that allows for easy implementation into existing designs. It supports both forward and reverse motor rotation, which can be controlled via the logic input pins. This flexibility makes it a versatile choice for designers looking to create systems with bidirectional motor control capabilities.

In summary, the ON Semiconductor LB11946-E motor driver IC is a compact, efficient, and reliable solution for driving single-phase motors in a variety of applications. Its integrated features and ease of use make it an excellent choice for designers looking to create sophisticated motor control systems with minimal design complexity and reduced time to market.
