Products specifications

Categories Development Boards, Kits, Programmers
Manufacturer ON Semiconductor
Main Purpose Power Management, Motor Control
Utilized IC / Part LB1846MC
Supplied Contents Board(s)
Win Source Part Number 778303-LB1846MCGEVB
Popularity Medium
Supply and Demand Status Limited
Introduction Date January 01, 2000
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian LB1846MCGEVB CAD Model

Description

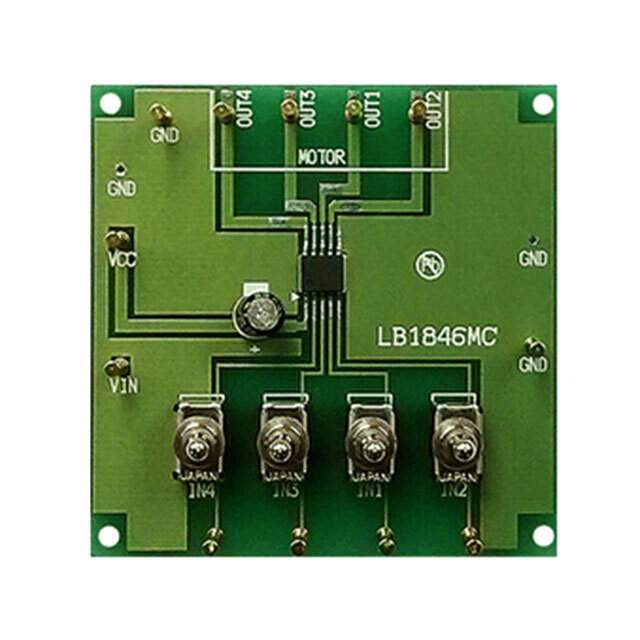

ON Semiconductor LB1846MCGEVB Motor Driver Evaluation Board

The LB1846MCGEVB from ON Semiconductor is a comprehensive evaluation board designed for testing the capabilities and performance of the LB1846MC motor driver IC. This evaluation board is an essential tool for engineers and developers who are looking to implement the LB1846MC in their motor control applications, particularly for driving small stepper motors and DC brush motors.

The LB1846MC is a versatile driver IC capable of controlling two-phase bipolar stepper motors and DC brush motors with a supply voltage range of 9V to 36V. It is particularly noted for its compact size and efficient power management, making it suitable for a wide range of portable and space-constrained applications. The IC integrates multiple protection features, including thermal shutdown, under-voltage lockout, and over-current protection, ensuring reliable operation under various conditions.

The LB1846MCGEVB evaluation board is designed with user-friendliness in mind. It includes all the necessary external components to facilitate quick and easy testing of the LB1846MC. The board's layout is optimized for signal integrity and noise reduction, providing an accurate representation of the IC's performance in a real-world environment. Additionally, the board features multiple test points and connectors that allow for convenient interfacing with external test equipment.

With the LB1846MCGEVB, users can evaluate the motor driver's control functions, such as forward and reverse rotation, braking, and speed control. The evaluation board also allows for the adjustment of key parameters like current limiting and decay mode settings, enabling users to fine-tune the performance to match specific application requirements.

Whether you are developing consumer electronics, office automation equipment, or industrial machinery, the LB1846MCGEVB evaluation board is an invaluable asset for ensuring your motor control solution is optimized for efficiency, performance, and reliability. ON Semiconductor provides comprehensive documentation and support for the evaluation board, making it easier for designers to accelerate their development process and bring their products to market faster.
