ON Semiconductor LM337BTG Adjustable Negative Voltage Regulator

The LM337BTG from ON Semiconductor is a versatile and reliable adjustable negative voltage regulator designed to offer a convenient and efficient solution for applications requiring a precision negative voltage source. This regulator can deliver up to 1.5A of load current with an output voltage adjustable from -1.2V to -37V, making it an ideal choice for a wide range of electronic circuits.

Key Features:

• Output Voltage Range: The LM337BTG offers an adjustable output voltage range from -1.2V to -37V, which can be set with just two external resistors.
• Output Current: Capable of providing 1.5A of output current, it is suitable for a variety of applications, from powering complex circuits to simple negative voltage requirements.
• Load Regulation: The device boasts excellent load regulation characteristics, ensuring a stable output voltage even with changes in load current.
• Line Regulation: Similarly, its line regulation ensures consistent performance despite variations in input voltage, making it reliable for use in environments with fluctuating power supplies.
• Thermal Overload Protection: Safety is a priority, and the LM337BTG comes equipped with thermal overload protection that shuts down the regulator to prevent damage from overheating.
• Current Limiting: Built-in current limiting features protect both the voltage regulator and your application from excessive current conditions.

Applications:

The LM337BTG is suitable for a myriad of applications, including:

• Power supplies for analog and digital circuits
• Automotive electronics
• Battery chargers
• Linear regulators in a variety of electronic devices

Package and Quality:

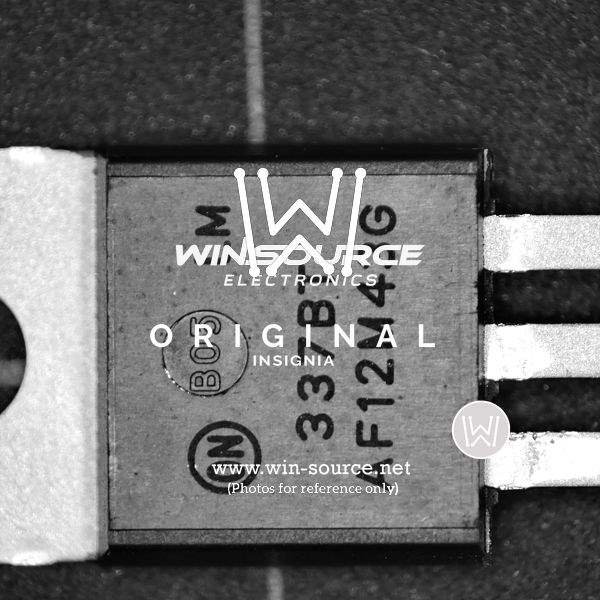

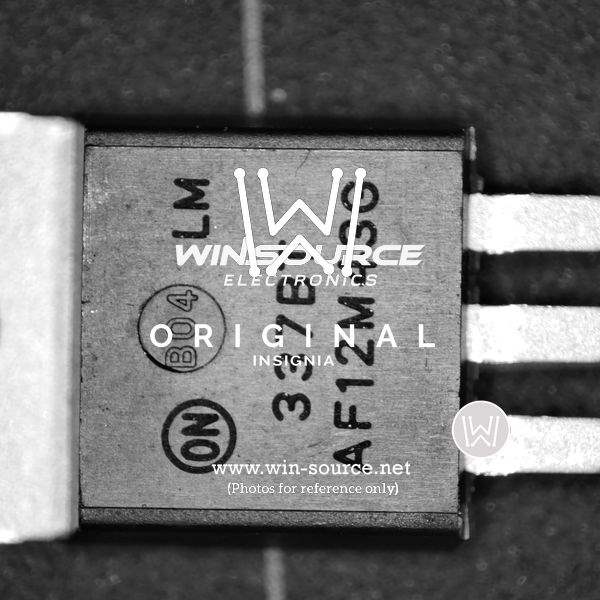

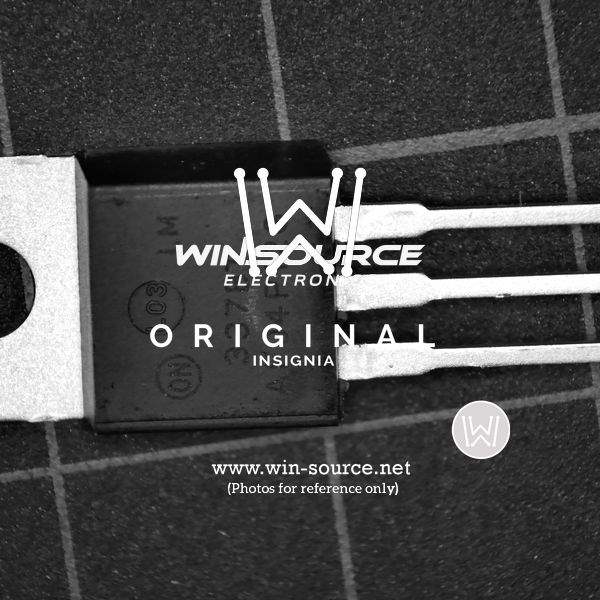

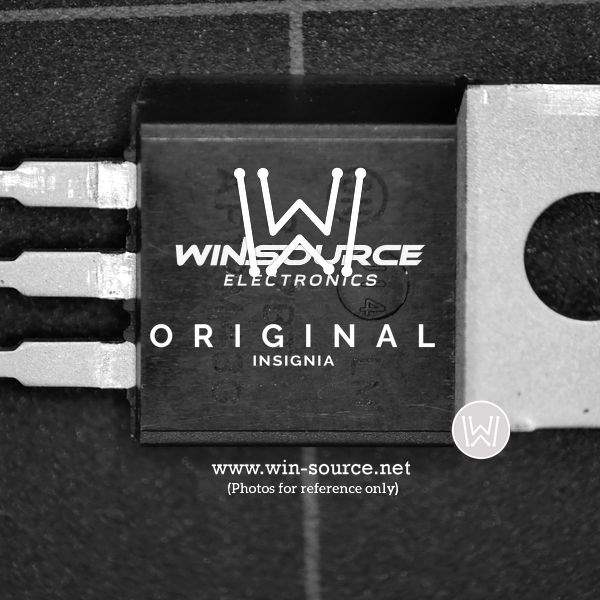

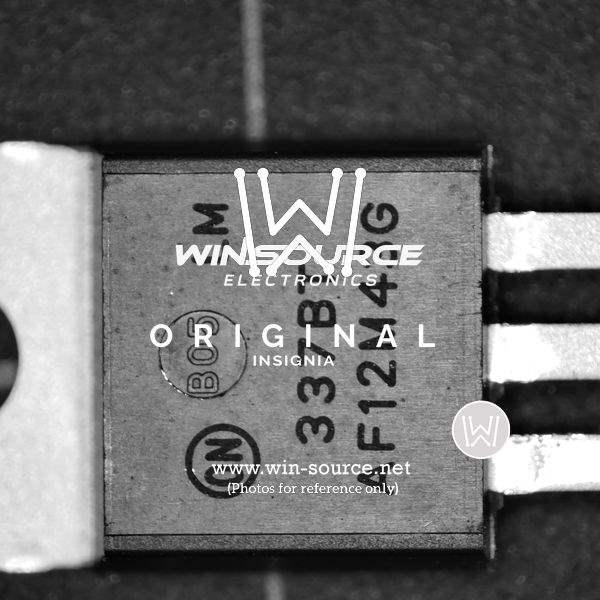

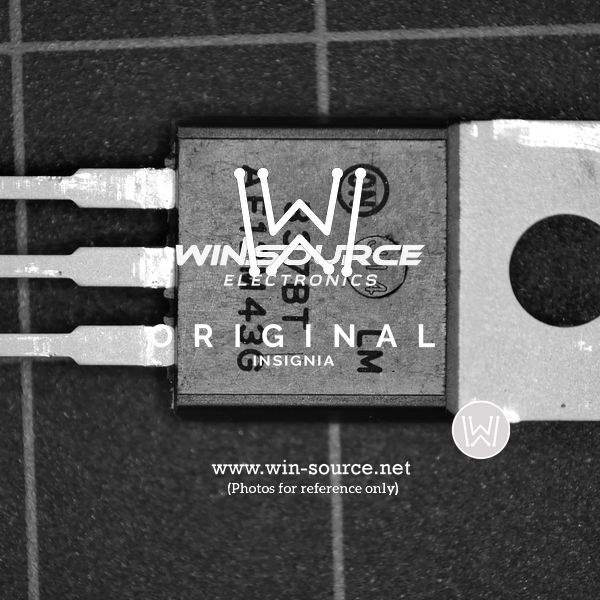

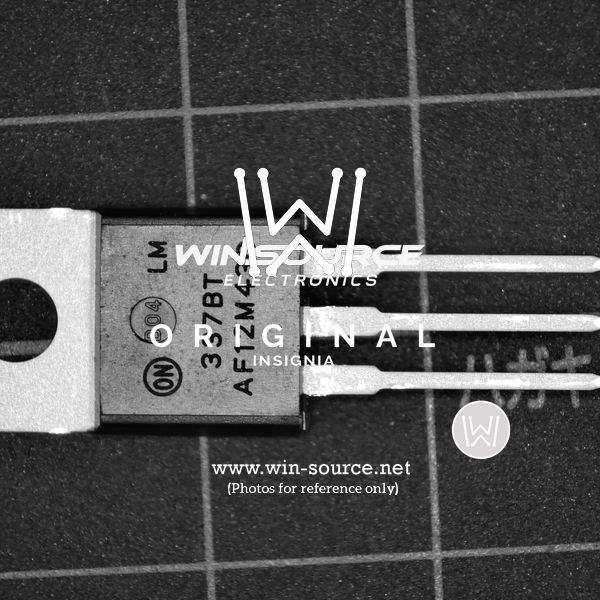

The regulator is available in a TO-220 package, which is known for its durability and thermal performance. Additionally, ON Semiconductor ensures that the LM337BTG meets rigorous quality standards, providing a reliable component for your electronic designs.

Whether you're designing a custom power supply or need a dependable negative voltage source, the LM337BTG adjustable negative voltage regulator from ON Semiconductor is an excellent choice for your circuit requirements.
