Products specifications

Categories Integrated Circuits
Manufacturer ON Semiconductor
Packaging Tube/Rail
Status Active
Motor Type - Stepper Bipolar
Purpose Driver - Fully Integrated, Control and Power Stage
Technology BiCDMOS
Step Resolution 1/2, 1/8, 1/16, 1/32, 1/64, 1/128
Applications General Purpose
Output Current 4A
Supply Voltage - Operating 0 V to 5 V
Voltage - Load 9 V to 45 V
Temperature Range - Operating -30°C to 85°C (TA)
Mounting Through Hole

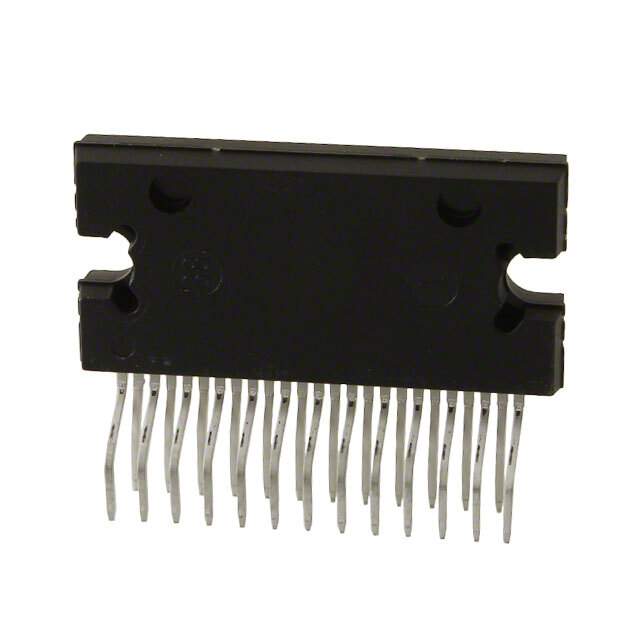

Case / Package 25-HZIP
Win Source Part Number 072743-LV8727-E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name LV8727
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian LV8727-E CAD Model

Description

The LV8727-E from ON Semiconductor is a highly versatile, integrated stepper motor driver designed to drive bipolar stepper motors with high precision and efficiency. This driver is suitable for a wide range of applications including office automation machines, factory automation equipment, and consumer electronics.

Key Features

  • Output Current: The LV8727-E is capable of delivering an output current up to 3 A, making it suitable for driving a wide range of stepper motors.
  • Operating Voltage: It operates within a voltage range of 9 V to 32 V, allowing it to be used in various systems without the need for additional voltage regulation.
  • Microstepping Support: The driver supports microstepping up to 1/128 steps, providing smooth and precise motor control which is essential for applications requiring fine positioning.
  • Low RDS(on) MOSFETs: Integrated low on-resistance (RDS(on)) MOSFETs ensure efficient operation with reduced heat generation.
  • Protection Features: It includes multiple protection features such as overcurrent protection, thermal shutdown, and under-voltage lockout, ensuring reliable operation and longevity of the motor and driver.

Applications

  • 3D Printers
  • CNC Machines
  • Robotics
  • Security Cameras
  • Medical Equipment

Product Advantages

The LV8727-E stepper motor driver is designed with the end-user in mind, offering ease of use with a simple step and direction interface. Its compact design and integrated features save space on the PCB and reduce external component requirements. The device's high efficiency and advanced protection features ensure that it operates reliably in various conditions without compromising performance.

Ordering Information

To order the LV8727-E or to obtain more information about pricing and availability, please visit the ON Semiconductor website or contact an authorized distributor. Ensure that you are getting the genuine product by purchasing through official channels.
