Products specifications

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Tube
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 45V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Maximum) at If 760mV at 30A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 1mA at 45V
Operating Temperature - Junction -65°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package TO-247-3
Supplier Device Package TO-247
Family Part Number MBR3045WT
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Win Source Part Number 1216103-MBR3045WT
Manufacturer Homepage www.mccsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MBR3045WT CAD Model

Description

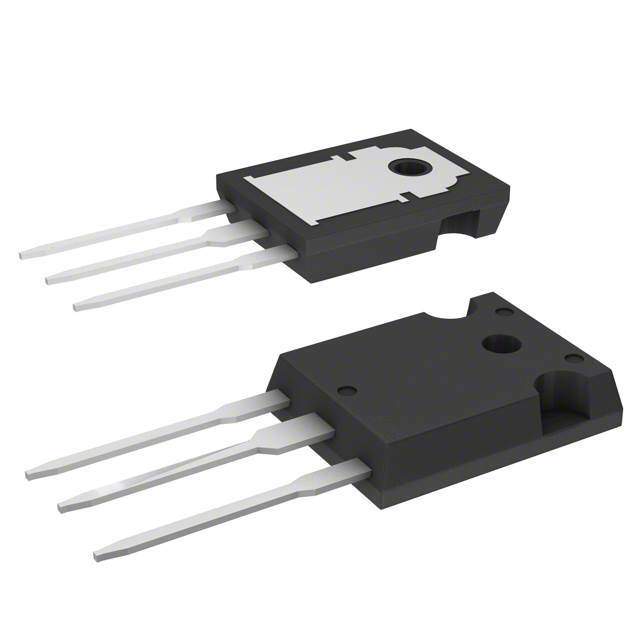

The ON Semiconductor MBR3045WT is a robust Schottky diode designed to offer efficient power management solutions for a wide array of applications. This high-performance diode is engineered to minimize power loss and heat generation, which makes it an excellent choice for high-frequency and energy-sensitive circuits.

Key Features

  • Dual Schottky Barrier Rectifiers: The MBR3045WT contains two diodes in a single package, making it ideal for applications that require a compact design with high efficiency.
  • High Surge Capability: With its superior surge handling capacity, this diode is capable of withstanding high surge currents, ensuring reliability and stability in power circuits.
  • Low Power Loss: The device exhibits a low forward voltage drop, which translates to reduced power loss during operation and enhances overall system efficiency.
  • High Current Capacity: This diode supports a high average forward rectified current, making it suitable for high-current applications.
  • Wide Operating Temperature Range: The MBR3045WT operates effectively over a broad temperature range, ensuring consistent performance even under extreme conditions.

Applications

The versatility of the MBR3045WT makes it an ideal component for various applications, including:

  • Power supply units
  • DC-DC converters
  • Free-wheeling diodes in converters and motor control circuits
  • Automotive applications
  • Switching power supplies
  • Adapters and battery chargers

Product Specifications

Parameter Value Configuration Common Cathode Peak Repetitive Reverse Voltage 45 V Average Forward Current 30 A Max Surge Current 250 A Operating Junction Temperature -65 to 175 °C

With its exceptional performance and reliability, the ON Semiconductor MBR3045WT Schottky Diode stands out as a superior choice for designers and engineers looking to enhance their power management systems.
