Same model may have multiple batches, images only for reference.

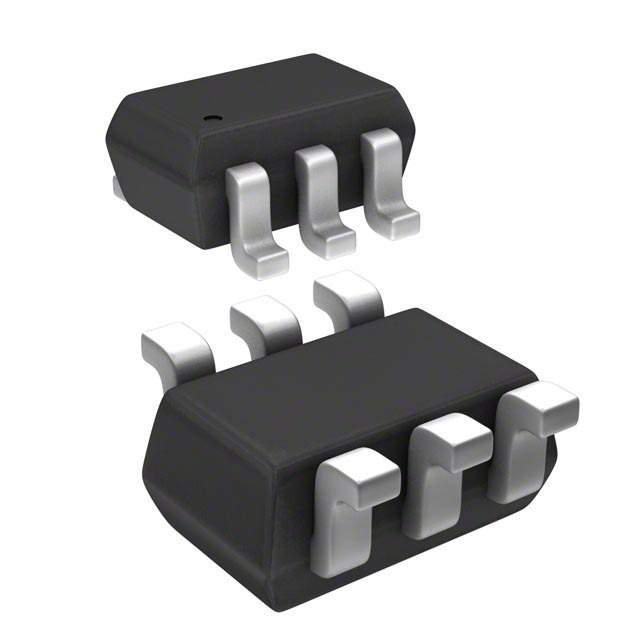

CDBV6-00340TI-G Real Image
Same model may have multiple batches, images only for reference.

CDBV6-00340TI-G

Part No CDBV6-00340TI-G
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 40V SOT363 / SMD Schottky Barrier Diode Arrays
Sample
ECAD Module
Need Help
Request For Proposal

Products specifications

Manufacturer Comchip Technology
Packaging Reel
Diode Configuration 3 Independent
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 40V
Current - Average Rectified (Io) (per Diode) 30mA (DC)
Voltage - Forward (Vf) (Maximum) at If 370mV at 1mA
Current - Reverse Leakage at Vr 1μA at 10V
Operating Temperature - Junction 125°C (Maximum)
Mounting Style SMD
Manufacturer Package 6-TSSOP, SC-88, SOT-363
Supplier Device Package SOT-363
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800592-CDBV6-00340TI-G

Description

The 800592-CDBV6-00340TI-G is a Schottky diode configuration that has 3 independent diodes. The maximum DC reverse voltage is 40V, and the average rectified current per diode is 30mA (DC). The forward voltage is 370mV at 1mA, and the reverse leakage current is 1μA at 10V. This diode is available in a SOT-363 package type. The operating temperature range is a maximum of 125°C. This product is supplied by Comchip Technology and is available in reel packaging with a manufacturer pack quantity of 3,000.
