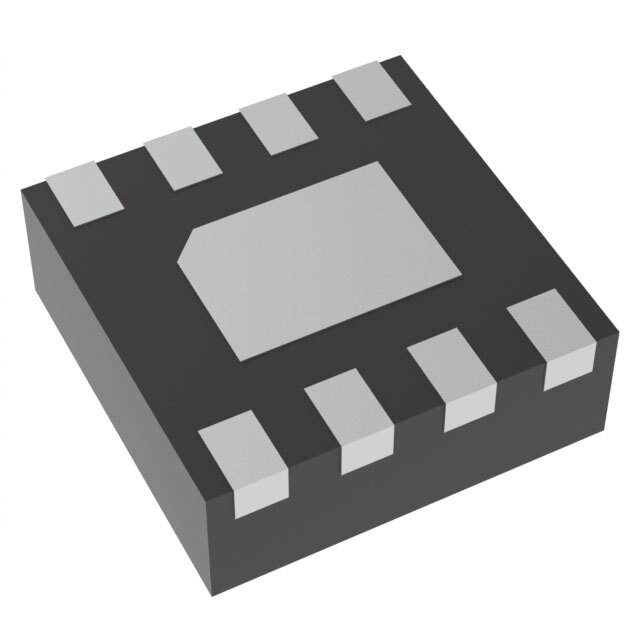

ON Semiconductor MC100EPT23MNR4G Overview

The ON Semiconductor MC100EPT23MNR4G is a high-performance 3.3V LVPECL to LVTTL translator integrated circuit designed to address the needs of high-speed signal conversion in advanced digital systems. This device is part of ON Semiconductor's ECLinPS MAX™ family, which is renowned for providing robust solutions for signal translation between different logic levels.

Key Features

• Differential LVPECL Inputs: The MC100EPT23MNR4G features differential Low Voltage Positive Emitter Coupled Logic (LVPECL) inputs, ensuring compatibility with high-speed differential signals and providing excellent noise immunity.
• LVTTL Outputs: The outputs are Low Voltage Transistor-Transistor Logic (LVTTL) compatible, offering seamless integration with devices that operate at lower voltage levels.
• High-Speed Performance: This device is capable of translating signals at high speeds, making it suitable for applications that require fast data transfer and minimal signal delay.
• Power Supply: It operates from a 3.3V power supply, which is a common voltage level for many digital systems, ensuring easy implementation without the need for additional voltage regulation.
• Temperature Range: The MC100EPT23MNR4G is designed to perform reliably over an extended industrial temperature range, making it suitable for use in harsh environments.

Applications

The ON Semiconductor MC100EPT23MNR4G is ideal for use in a variety of applications that require the translation of high-speed differential signals to single-ended logic levels. This includes:

• Networking equipment such as routers, switches, and hubs
• Data communication and telecommunication systems
• High-speed data acquisition and processing
• Computer peripherals and servers
• Test and measurement equipment

Quality and Reliability

ON Semiconductor is known for its commitment to quality and reliability, and the MC100EPT23MNR4G is no exception. This product is manufactured to meet the highest industry standards, ensuring long-term reliability for critical applications.

In summary, the MC100EPT23MNR4G from ON Semiconductor is a versatile and reliable solution for converting LVPECL signals to LVTTL logic levels in high-speed digital systems. Its performance, coupled with ON Semiconductor's reputation for quality, makes it an excellent choice for designers looking to bridge different logic families within their electronic designs.
