ON Semiconductor MC14093BCP Quad 2-Input NAND Schmitt Trigger

The ON Semiconductor MC14093BCP is a versatile and high-performance Quad 2-Input NAND Schmitt Trigger integrated circuit, designed to operate with a power supply range of 3V to 18V. This component is part of the MC14000 series, which is well-known for its robustness and reliability in a wide array of electronic applications. The MC14093BCP is fabricated with MOS P-Channel and N-Channel enhancement mode devices in a single monolithic structure, providing a unique combination of speed and power-saving features.

The Schmitt Trigger function of the MC14093BCP provides a threshold on both the positive-going and negative-going input signals, which is particularly useful for transforming slow-rising and falling waveforms into sharper signals for reliable digital processing. This feature makes it an excellent choice for applications that require noise immunity and input hysteresis, such as in wave shaping and in noisy environments where signal integrity is of utmost importance.

Each of the four independent NAND gates in the MC14093BCP can be used separately, providing flexibility in design. The versatility of this IC allows it to be implemented in a variety of digital applications, such as in pulse shapers, astable multivibrators, monostable multivibrators, and debounce circuits for mechanical switch inputs.

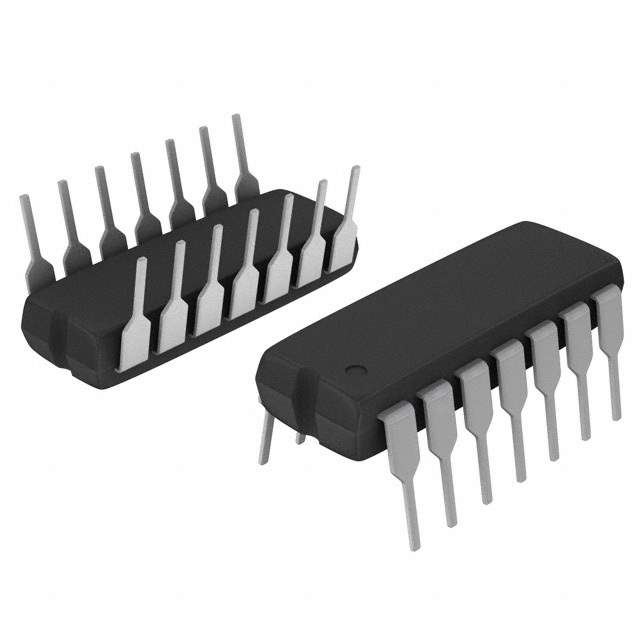

The MC14093BCP comes in a standard 14-pin DIP (Dual In-line Package), making it easy to handle and integrate into both prototyping and production environments. The pin configuration is designed for straightforward implementation, minimizing the potential for wiring errors and simplifying the circuit design process.

With its wide operating voltage range, the MC14093BCP is suitable for interfacing with both TTL (Transistor-Transistor Logic) and CMOS (Complementary Metal-Oxide Semiconductor) logic levels, offering designers a high degree of compatibility with existing and new circuit designs. ON Semiconductor's commitment to quality ensures that the MC14093BCP meets the stringent requirements for industrial and consumer electronic devices, making it a reliable choice for engineers and hobbyists alike.

Overall, the MC14093BCP from ON Semiconductor is a highly functional, reliable, and easy-to-use component that enhances the performance and stability of digital circuits in a multitude of applications.
