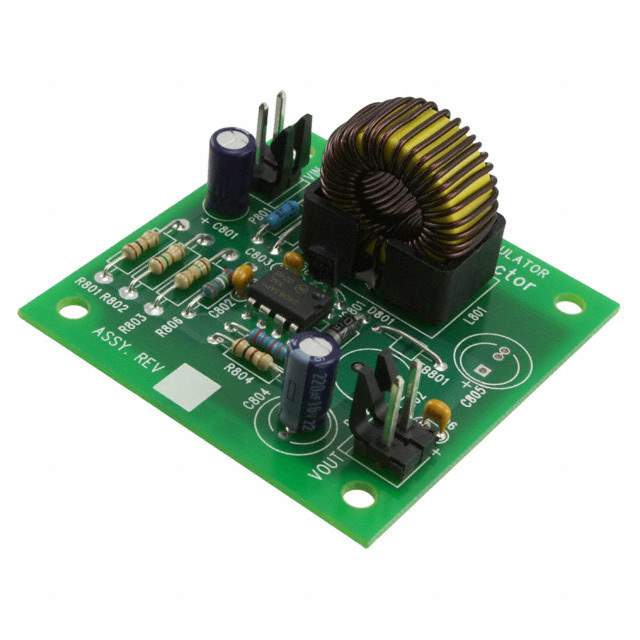

ON Semiconductor MC34063LBKEVB Evaluation Board

The MC34063LBKEVB is a comprehensive evaluation board designed by ON Semiconductor to showcase the capabilities of the MC34063 series of DC-DC converters. This versatile evaluation platform is tailored for engineers, designers, and hobbyists who are looking to explore the functionalities and performance of the MC34063 switching regulator in various power conversion applications.

The MC34063 is a monolithic control circuit containing the primary functions required for DC-DC converters. It is capable of step-up, step-down, and voltage-inverting applications with a minimum number of external components. The MC34063LBKEVB board is equipped with a pre-installed MC34063 IC and is configured to demonstrate a buck (step-down) converter circuit, which is one of the most common applications of this IC.

Key Features of MC34063LBKEVB:

• Flexibility: The board supports multiple topologies including step-up, step-down, and voltage-inverting converters, providing a flexible platform for various design requirements.
• Adjustable Output: Users can easily adjust the output voltage and current by changing the external components, making the board suitable for a wide range of applications.
• Efficiency: The MC34063 IC offers efficient power conversion, which is critical for battery-powered and energy-sensitive applications.
• Protection Features: The evaluation board includes built-in thermal shutdown and current limiting features, ensuring safe operation under various conditions.
• Compact Design: The evaluation board is designed with a small form factor, making it easy to integrate into existing projects or prototypes.

The MC34063LBKEVB evaluation board serves as an excellent tool for understanding the operation of switching power supplies and for expediting the design process. It allows users to quickly prototype and test circuits before committing to a final design. The board is fully assembled and requires no additional hardware for immediate use, making it an ideal starting point for experimenting with the MC34063 DC-DC converter series.

Whether you are an experienced professional or a student learning about power electronics, the MC34063LBKEVB from ON Semiconductor provides a valuable and user-friendly platform for developing a wide range of power conversion solutions.
