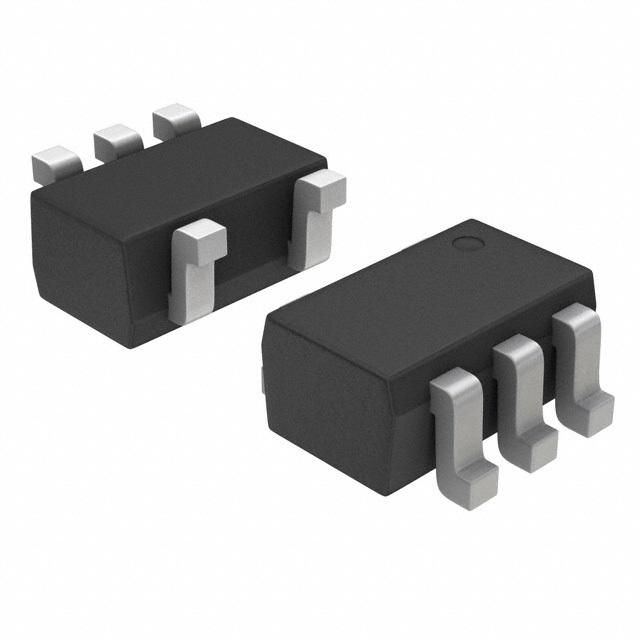

ON Semiconductor MC74VHC1GU04DF Single Inverter

The ON Semiconductor MC74VHC1GU04DF is a high-speed CMOS single inverter fabricated with silicon gate CMOS technology. It achieves the high-speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. This device is designed for use in wave shaping, signal conditioning, or in logic circuits where high-speed and low power are key considerations.

Key Features

• High Speed: The MC74VHC1GU04DF boasts a propagation delay time of approximately 5.2 ns at VCC = 5V, CL = 15 pF, TA = 25°C, ensuring swift signal processing for time-critical applications.
• Low Power Dissipation: With a power-down feature that reduces power consumption significantly, this inverter is ideal for power-sensitive designs.
• High Noise Immunity: Characterized by a VNIH = VNIL = 28% VCC minimum, it provides reliable performance in noisy environments.
• Power-Off Protection: The device has inputs and outputs that can tolerate up to 5.5V, allowing for safe operation during power-off conditions.
• Wide Operating Voltage Range: It operates on a wide voltage range from 2V to 5.5V, making it versatile for various applications and compatible with multiple logic levels.
• Pin and Function Compatible with Other Standard Logic Families: This inverter can be easily integrated into existing systems that use standard logic families.
• Lead-Free, Halogen-Free and RoHS Compliant: The MC74VHC1GU04DF is designed with environmental considerations in mind, adhering to current regulations for hazardous substances.

Applications

The ON Semiconductor MC74VHC1GU04DF is suitable for a broad range of applications, including:

• Waveform shaping
• Signal conditioning
• Logic level conversion
• High-speed logic circuits

With its robust design and versatile features, the MC74VHC1GU04DF is an excellent choice for designers looking for a reliable single inverter that combines speed with energy efficiency.
