ON Semiconductor MCH6336-P-TL-E Dual P-Channel MOSFET

The ON Semiconductor MCH6336-P-TL-E is a high-performance, dual P-Channel MOSFET designed to deliver efficient power management and switching capabilities in a compact package. This semiconductor device is engineered for applications that require low on-resistance, high-speed switching, and minimal power loss. With its advanced technology, the MCH6336-P-TL-E is ideal for a wide range of electronic circuits, including power management in portable devices, load switch circuits, and battery protection solutions.

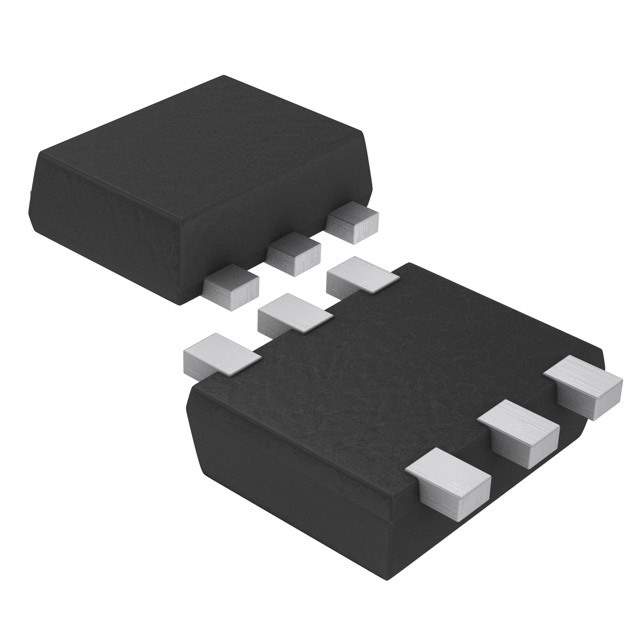

The MCH6336-P-TL-E features two P-Channel MOSFETs in a single TSMT6 package, allowing for space-saving designs in densely packed PCBs. Each MOSFET boasts a drain-source voltage (V<sub>DS) of -20V and a continuous drain current (I<sub>D) of -6A, providing robust performance for various applications. The low threshold voltage ensures that the device can be driven at lower gate voltages, making it compatible with low-voltage logic signals and reducing power consumption in the application.

With a low on-resistance (R<sub>DS(on)) of just 28mΩ at V<sub>GS = -4.5V, the MCH6336-P-TL-E ensures high efficiency and minimal voltage drop across the MOSFET, which is critical for maintaining battery life in portable devices. The device also offers fast switching speeds, which is advantageous for high-frequency applications and helps to reduce switching losses.

ON Semiconductor's attention to reliability is evident in the MCH6336-P-TL-E, which includes built-in protection features such as high peak current capability and thermal shutdown. These features safeguard the device and the application from potential damage due to overcurrent or excessive heat.

The MCH6336-P-TL-E is RoHS compliant and halogen-free, reflecting ON Semiconductor's commitment to environmental responsibility. Its compact form factor and high-performance characteristics make it a versatile choice for designers looking to optimize their power management solutions without compromising on space or efficiency.
