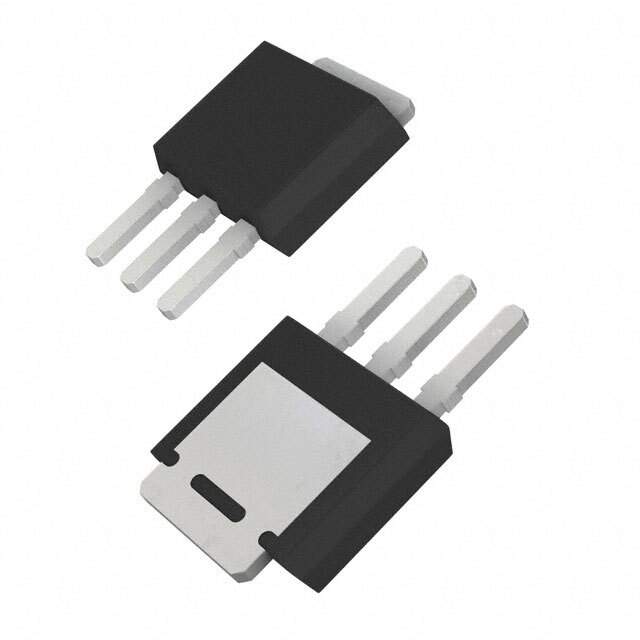

The MJD117-1G from ON Semiconductor is a robust PNP power transistor designed to deliver high performance in a wide range of applications. This transistor is part of the MJD series, known for its efficiency and reliability. It is particularly suited for use in power switching circuits, various amplifiers, and any application requiring a high-current gain bandwidth product.

Key Features

• High Current Capacity: The MJD117-1G can handle continuous collector currents up to 2A, making it suitable for moderate to high power applications.
• High Voltage Rating: With a collector-emitter voltage (VCEO) of -100V, it can be used in circuits with higher operating voltages without the risk of breakdown.
• Power Dissipation: It has a power dissipation rating of 20W, which allows it to handle significant power levels, making it ideal for power amplification tasks.
• TO-252 (DPAK) Package: The MJD117-1G comes in a TO-252 package, also known as DPAK. This compact surface-mount package is designed for efficient thermal performance and space-saving on PCBs.
• Complementary NPN Transistor: It can be paired with its complementary NPN counterpart, the MJD117-1G, for push-pull amplifier configurations, providing a balanced and efficient circuit design.

Applications

The MJD117-1G PNP power transistor is versatile and can be used in a variety of electronic devices and circuits. Some common applications include:

• Power regulators and converters
• Motor control circuits
• Audio amplifiers
• Switching applications
• Driver stages in hi-fi amplifiers and television circuits

Quality and Reliability

ON Semiconductor is a trusted name in the industry, known for its commitment to quality and reliability. The MJD117-1G transistor is built to meet rigorous standards, ensuring stable performance and a long operational life for the products it is used in. Whether for commercial, industrial, or consumer applications, this PNP power transistor is an excellent choice for designers looking for a reliable component with consistent performance.
