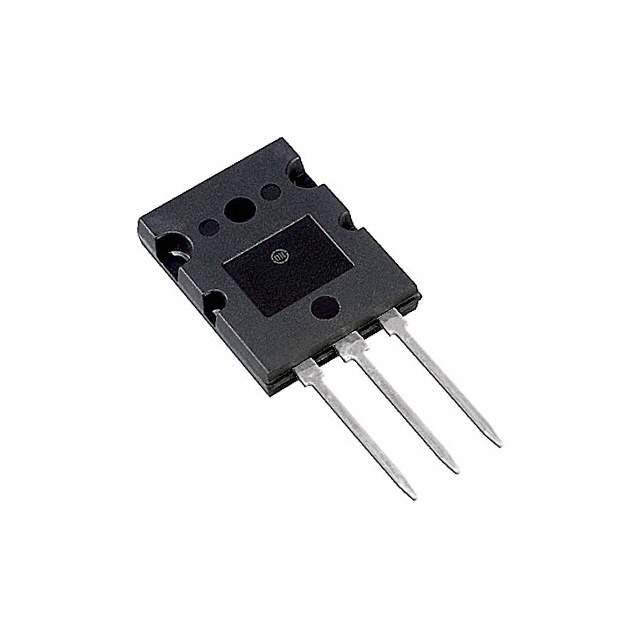

ON Semiconductor MJL21196 Power Transistor

The MJL21196 is a high-power, high-speed silicon NPN power transistor designed and produced by ON Semiconductor. It is part of the PowerBase™ transistor series which are intended for high power audio, disk head positioners, and other linear applications. This transistor can also be used in power switching circuits such as relay or solenoid drivers, dc-to-dc converters, inverters, and other general-purpose amplification or switching applications.

Key Features

• High Safe Operating Area (SOA): The MJL21196 can withstand high voltage and current without failure, making it reliable for demanding power applications.
• High Collector-Emitter Breakdown Voltage (VCEO): With a VCEO of 250V, this transistor can handle high voltage operations efficiently.
• High Current Capacity: It has a continuous collector current (IC) rating of 16A, which enables it to drive high current loads.
• Complementary PNP Type Available: The MJL21196 has a complementary PNP counterpart, the MJL21195, allowing for use in push-pull or other complementary configurations.
• Low Collector-Emitter Saturation Voltage: This feature ensures that the transistor operates with minimal power loss when in saturation, improving overall efficiency.
• Wide Operating Frequency Range: It can operate at high frequencies, making it suitable for audio amplification and high-speed switching applications.

Applications

The robust design of the MJL21196 makes it ideal for a variety of applications including:

• High-Fidelity Audio Amplifiers
• Professional Audio Equipment
• Linear Power Supplies
• Motor Controls
• High Power Switching Circuits

Technical Specifications

With its robust performance and reliability, the MJL21196 from ON Semiconductor is an excellent choice for designers looking for a transistor capable of handling high-power applications with efficiency and precision.
