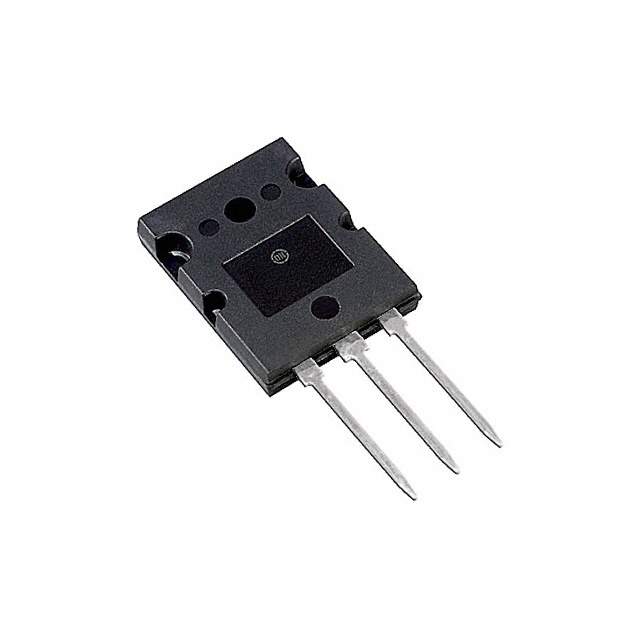

The ON Semiconductor MJL1302AG is a high-power, high-performance PNP bipolar junction transistor (BJT) designed to deliver excellent linearity and gain characteristics. This robust power transistor is specifically engineered for audio power amplifier applications where high power output and efficiency are required. Its outstanding features make it suitable for high-fidelity audio systems and demanding audio applications.

Key Features

• High Current Capability: The MJL1302AG can handle continuous collector currents up to 15A, making it capable of driving high-power circuits without compromise.
• High Power Dissipation: With a power dissipation rating of 200W, this transistor can sustain high levels of power without overheating, ensuring stable performance.
• High Voltage Operation: It is rated for a collector-emitter voltage (VCEO) of up to 350V, providing a wide operating range for various applications.
• Excellent Gain Linearity: The device provides excellent gain linearity which is vital for audio applications to preserve signal fidelity across the entire audio spectrum.
• Complementary NPN Type: The MJL1302AG is designed to pair with its NPN counterpart, the MJL3281AG, for a complementary push-pull amplifier configuration.

Applications

The MJL1302AG is ideal for a range of applications, especially where high power and audio performance are of utmost importance. Some of the typical applications include:

• High-End Audio Amplifiers
• Professional Audio Equipment
• Home Theater Systems
• Public Address Systems
• Active Speaker Systems

Product Specifications

Parameter Value Collector-Emitter Voltage (VCEO) 350V Collector Current (IC) 15A Power Dissipation (Pd) 200W DC Current Gain (hFE) 50 - 350 Package TO-264

The MJL1302AG from ON Semiconductor is a testament to the company's commitment to providing high-quality components that meet the rigorous demands of audio enthusiasts and professionals alike.
