ON Semiconductor MJL21193G Silicon Power Transistor

The MJL21193G is a high-power, high-performance silicon transistor designed and manufactured by ON Semiconductor. This transistor is part of a complementary pair, with the MJL21193G being the PNP type and its counterpart, the MJL21194G, serving as the NPN type. These transistors are specifically engineered for high-fidelity audio amplifier applications, providing exceptional sound quality and reliability.

Constructed with ON Semiconductor's state-of-the-art technology, the MJL21193G offers superior power handling capabilities. It boasts a collector-emitter voltage (VCEO) of 250V, which allows it to comfortably manage high-voltage applications. The device is capable of continuous collector current (IC) up to 16A, ensuring it can support substantial current loads without performance degradation. Moreover, the peak collector current capability is even higher, providing ample headroom for demanding situations.

The MJL21193G features a high power dissipation rating of 200W, which is critical for maintaining stability and performance in high-power audio amplifiers and other power-intensive applications. This high dissipation capacity, combined with an excellent safe operating area (SOA), makes the MJL21193G a robust choice for audio power amplification stages.

ON Semiconductor has designed the MJL21193G with a low collector-emitter saturation voltage, which reduces power loss and improves efficiency, particularly important in high-power audio systems where thermal management is crucial. The transistor also exhibits high gain-bandwidth product and fast switching speeds, contributing to its ability to reproduce audio signals with high fidelity and minimal distortion.

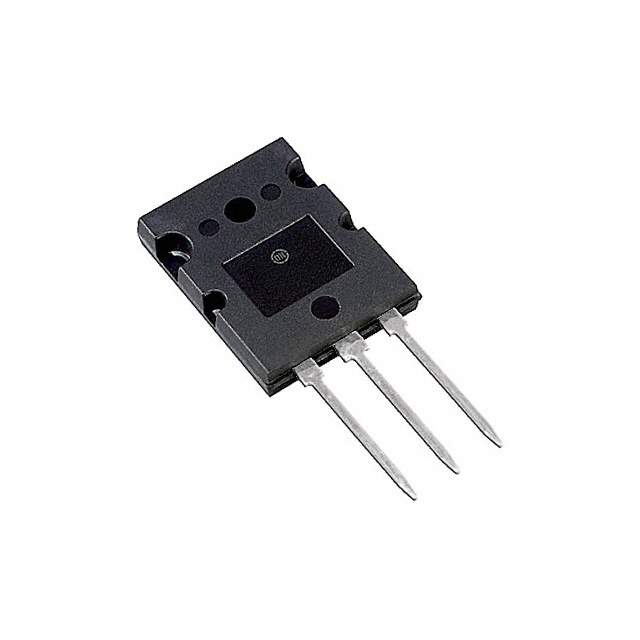

The MJL21193G comes in a TO-264 package, which is known for its ability to handle high thermal loads due to its large, isolated mounting base. This package is well-suited for mounting on heat sinks, which is essential for maintaining thermal stability and prolonging the lifespan of the transistor under continuous operation.

In summary, the ON Semiconductor MJL21193G is a robust, high-performance PNP power transistor that offers excellent voltage and current handling capabilities, making it a top choice for high-fidelity audio amplification and other high-power applications that demand reliability and sound quality.
