The MJL21196G is a state-of-the-art silicon power transistor from ON Semiconductor, designed to deliver high performance in demanding applications. This device is a part of the high-power bipolar transistors category, known for their robustness and efficiency in handling significant current and power levels. The MJL21196G is specifically engineered to cater to the stringent requirements of audio amplification, switching power supplies, and other high-power switching applications.

Key Features

• High Current Capability: This transistor can handle continuous collector currents up to 16A, making it suitable for high-power circuits.
• High Voltage Rating: With a collector-emitter voltage (VCEO) of 250V, it can be used in circuits with high operating voltages.
• Low Saturation Voltage: The low VCE(sat) minimizes on-state power dissipation, enhancing overall efficiency.
• High Frequency Response: It has a transition frequency (fT) of 4MHz, which allows for good performance in high-frequency applications.
• Complement to MJL21194G: The MJL21196G is the PNP complement to the NPN MJL21194G, allowing for use in complementary or push-pull configurations.

Applications

The MJL21196G is ideal for a variety of applications that require high power and high speed, including:

• Audio Power Amplifiers
• Switching Power Supplies
• DC-DC Converters
• Motor Control Circuits
• Linear Regulators

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the MJL21196G is no exception. It is manufactured to the highest standards, ensuring reliability and performance consistency. With its robust construction and ON Semiconductor's rigorous testing, this transistor is built to last in the most challenging environments.

Package and Availability

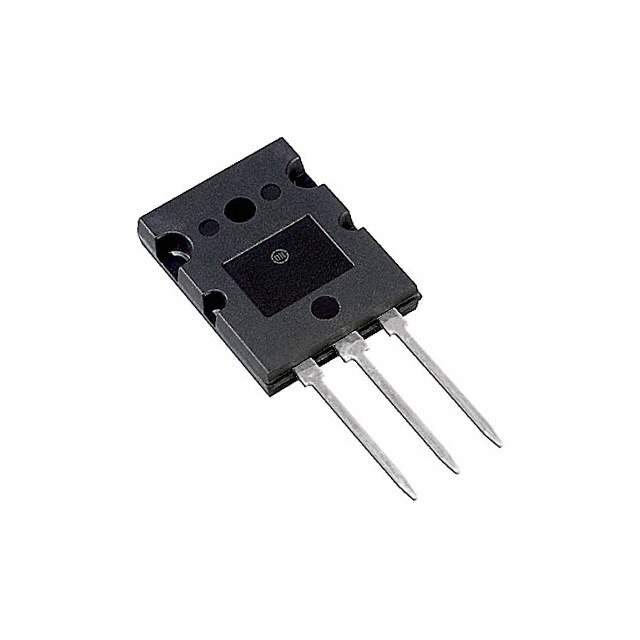

The MJL21196G comes in a TO-264 package, which provides excellent power dissipation and thermal performance. This package is also conducive to simplified mounting and heat sinking, which is critical for maintaining the longevity and reliability of the device. For purchasing information, datasheets, and technical support, customers can visit the ON Semiconductor website or contact authorized distributors.
