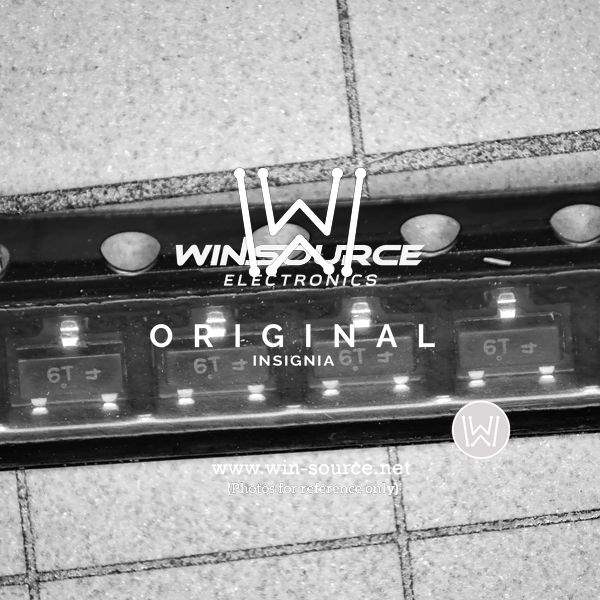

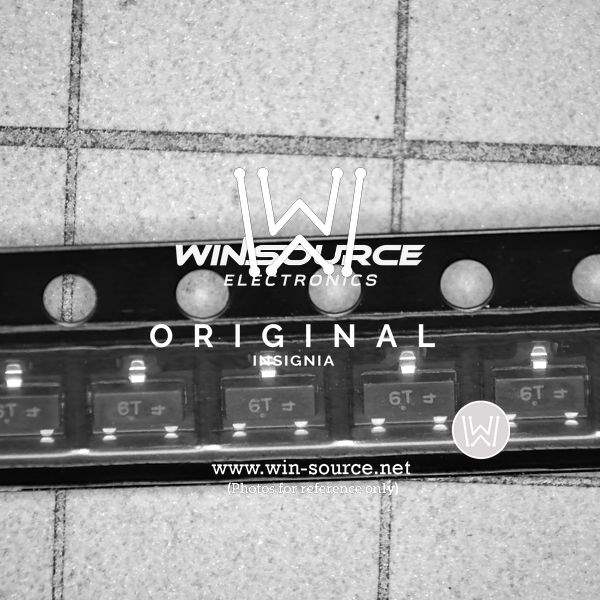

ON Semiconductor MMBFJ310LT1G N-Channel RF Amplifier

The MMBFJ310LT1G from ON Semiconductor is a high-quality N-Channel RF Amplifier designed for analog and digital applications requiring high-speed and low noise performance. This product is a part of the JFET (Junction Field Effect Transistor) family, which is well-known for its high input impedance and low power consumption, making it an ideal choice for sensitive RF amplification tasks.

Key Features

• Device Type: N-Channel RF Amplifier JFET
• Drain-Source Voltage (Vds): 25 V
• Gate-Source Voltage (Vgs): 25 V
• Continuous Drain Current (Id): 10 mA
• Power Dissipation (Pd): 225 mW
• High Gain: Ensures improved signal amplification
• Low Noise: Provides clean signal amplification, suitable for RF applications
• High-Speed Performance: Suitable for high-frequency operations
• High Input Impedance: Minimizes loading on the previous stage of the circuit
• Package: SOT-23 surface-mount package for compact design
• RoHS Compliant: Meets environmental standards, reducing hazardous substances

Applications

With its excellent electronic properties, the MMBFJ310LT1G is widely used in various applications that include, but are not limited to:

• RF amplifiers and oscillators
• Mixers and modulators
• Low noise audio amplifiers
• Analog switches
• High-speed analog circuits
• Communication systems
• Medical equipment

Quality and Reliability

ON Semiconductor is committed to providing high-quality products that meet industry standards. The MMBFJ310LT1G N-Channel RF Amplifier is manufactured with precision to ensure consistent performance and reliability. Its robustness and durability make it a preferred choice for engineers and designers looking for a dependable component for their electronic designs.

Overall, the MMBFJ310LT1G is a versatile and efficient solution for a wide range of RF applications, offering the perfect balance between performance and power consumption, packaged in a small form factor for ease of integration into various circuit designs.
