Same model may have multiple batches, images only for reference.

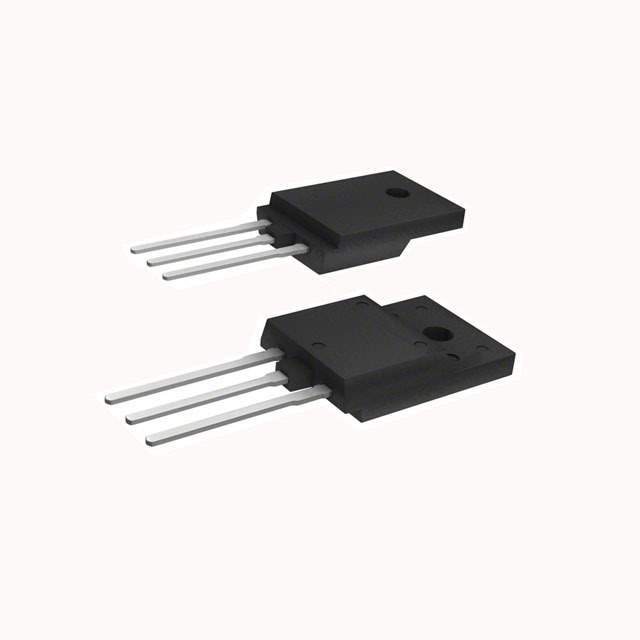

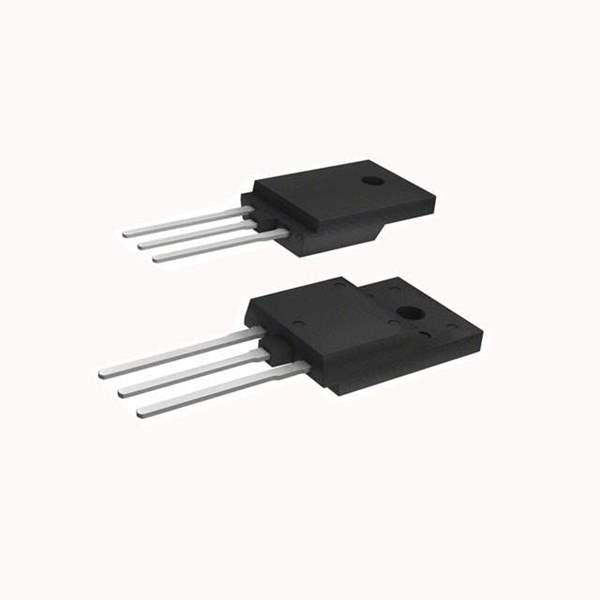

FKP300A Real Image
Same model may have multiple batches, images only for reference.

FKP300A

Part No FKP300A
Manufacturer Sanken
Catalog Transistors - FETs, MOSFETs - RF
Description N-Channel MOS FET
Datasheet
FKP300A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Channel Type Type N
Technology MOSFET
Drain Source Voltage 300V
Current - Continuous Drain (Id) @ 25°C 30A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 10V
Vgs(th) (Maximum) @ Id 4.5V @ 1mA
Input Capacitance (Ciss) (Maximum) @ Vds 3800pF @ 25V
Vgs (Maximum) ±30V
Power Dissipation (Maximum) 85W (Tc)
Rds On (Maximum) @ Id, Vgs 65 mOhm @ 15A, 10V
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Manufacturer Package TO-3PF
Package TO-3P-3 Full Pack
Win Source Part Number 1174385-FKP300A
Manufacturer Homepage www.sanken-ele.co.jp/en
Popularity Medium
Supply and Demand Status Limited
Family Name FKP300A
Introduction Date February 17, 2005
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian FKP300A CAD Model

Description

The FKP300A is a MOSFET technology discrete semiconductor product from Sanken.

  • Manufacturer: Sanken
  • Package: TO-3P-3 full pack
  • Mounting Style: Through-Hole
  • Maximum Continuous Drain Current: 30A @ 25°C
  • Maximum Power Dissipation: 85W @ Tc
  • Channel Type: N
  • Drain Source Voltage: 300V
  • Gate-Source Threshold Voltage: 4.5V @ 1mA
  • Gate-Source Voltage: ±30V
  • Maximum On-Resistance: 65 mOhm @ 15A, 10V
  • ECCN: EAR99
