The MPSW56RLRAG from ON Semiconductor is a high-quality PNP bipolar junction transistor (BJT) that offers users a blend of performance, reliability, and versatility. This semiconductor device is designed to handle moderate power amplification and switching applications, making it suitable for a wide range of electronic circuits.

Key Features:

• Transistor Polarity: PNP - This device is a PNP transistor, which means it is designed to allow current flow when a small negative voltage is applied to its base terminal.
• Collector-Emitter Voltage (VCEO): 80V - The MPSW56RLRAG can withstand up to 80 volts between its collector and emitter terminals when the base terminal is open.
• Collector Current (IC): 1A - This transistor can handle a continuous collector current of up to 1 ampere, making it suitable for a range of medium-power applications.
• Power Dissipation (Pd): 1.5W - With a power dissipation of 1.5 watts, the MPSW56RLRAG can manage a moderate amount of power without overheating.
• DC Current Gain (hFE): 100 - This specifies the transistor's ability to amplify the current, indicating that it can provide a current gain of 100 times the input current at the base terminal.

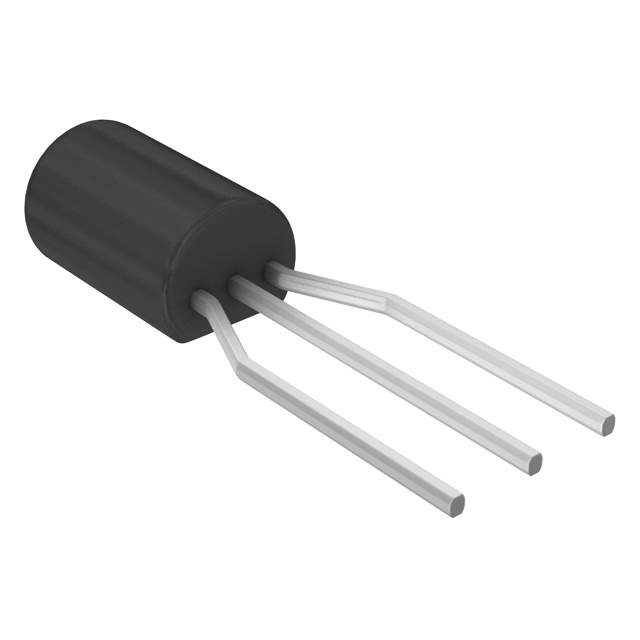

• Package / Case: TO-226-3, TO-92-3 (TO-226AA) - The device comes in a compact and widely used TO-92 package, which is easy to handle and integrate into various circuit designs.

Applications:

The MPSW56RLRAG is suitable for a diverse range of applications, including but not limited to:

• Power management circuits
• Linear amplifiers
• Signal processing
• Switching regulators
• Driver stages in hi-fi amplifiers and television circuits

ON Semiconductor's commitment to quality ensures that the MPSW56RLRAG transistor is a reliable component for designers and engineers looking to create efficient and durable electronic systems. Whether for hobbyist projects or commercial products, this transistor is an excellent choice for those in need of a PNP BJT with a solid balance of power handling and amplification capabilities.
