ON Semiconductor MR2535LRLG Product Overview

The MR2535LRLG is a highly efficient, robust power rectifier from ON Semiconductor, designed for a variety of applications that demand high reliability and performance. This rectifier is well-suited for use in power supplies, inverters, converters, freewheeling diodes, and other power-switching applications. Its superior design ensures that it can handle high surge currents without degradation, making it an excellent choice for products that are exposed to challenging electrical environments.

Key Features

• High Surge Capacity: With its ability to withstand high surge currents, the MR2535LRLG is ideal for applications that experience frequent voltage spikes.
• Reverse Voltage: It has a maximum repetitive reverse voltage (Vrrm) of 600V, which provides a wide safety margin for most power applications.
• Forward Current: The device is capable of handling a high average rectified forward current of 25A, ensuring reliable performance under heavy load conditions.
• Low Forward Voltage Drop: The low forward voltage drop (Vf) minimizes power loss and improves efficiency, making it suitable for high-efficiency power systems.
• Robust Design: The rectifier is designed to be rugged, with a guaranteed operation junction temperature range from -65°C to 175°C, accommodating extreme thermal environments.

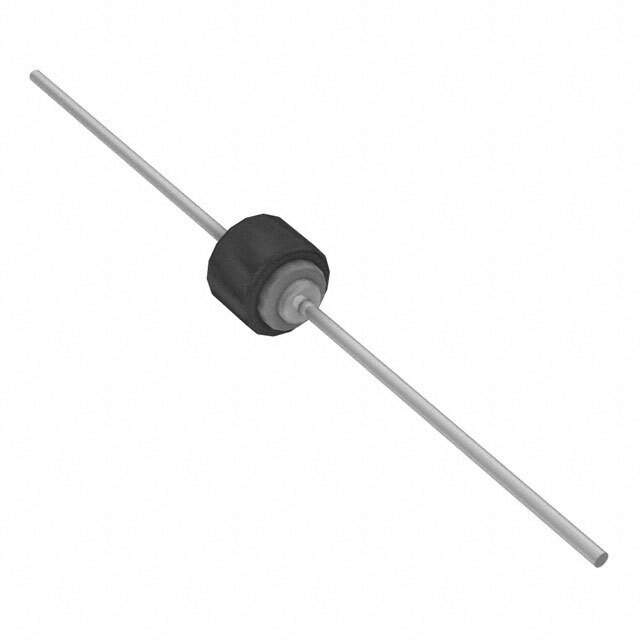

• Package: It comes in a highly durable axial lead package, which provides ease of installation and is compatible with various mounting techniques.

Applications

The MR2535LRLG from ON Semiconductor is versatile and can be integrated into a multitude of electronic circuits. Some of the typical applications include:

• Switching power supplies
• Motor controllers
• Automotive charging systems
• Power inverters and converters
• Free-wheeling diodes in power circuits

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the MR2535LRLG is no exception. It is manufactured to meet the highest industry standards for performance and reliability, ensuring that it can handle the rigors of both industrial and consumer applications. Whether you're designing a new power system or upgrading an existing one, the MR2535LRLG provides the assurance of a product that performs consistently over time.
