ON Semiconductor NC7WZ07FHX Dual Buffer

The ON Semiconductor NC7WZ07FHX is a high-performance dual buffer designed to meet the requirements of high-speed and low-voltage operating conditions. This component is part of ON Semiconductor's extensive range of logic devices, known for their reliability and efficiency in various applications. The NC7WZ07FHX is ideal for use in mobile phones, PDAs, computers, and other electronic devices where space is at a premium and power efficiency is crucial.

Key Features

• Operating Voltage: The device supports a broad operating voltage range from 1.65V to 5.5V, making it incredibly versatile for different circuit designs and applications.
• High-Speed: With a propagation delay of only 2.6ns at 5V, the NC7WZ07FHX ensures that signals are buffered quickly, minimizing latency in critical paths of high-speed digital circuits.
• Power Down Protection: Inputs and outputs are equipped with power down protection, which prevents any erratic behavior when the device is powered off, thereby safeguarding the integrity of the data and the connected components.
• Low Power Consumption: The ultra-low static power consumption makes this buffer an excellent choice for battery-operated devices where power efficiency is essential.

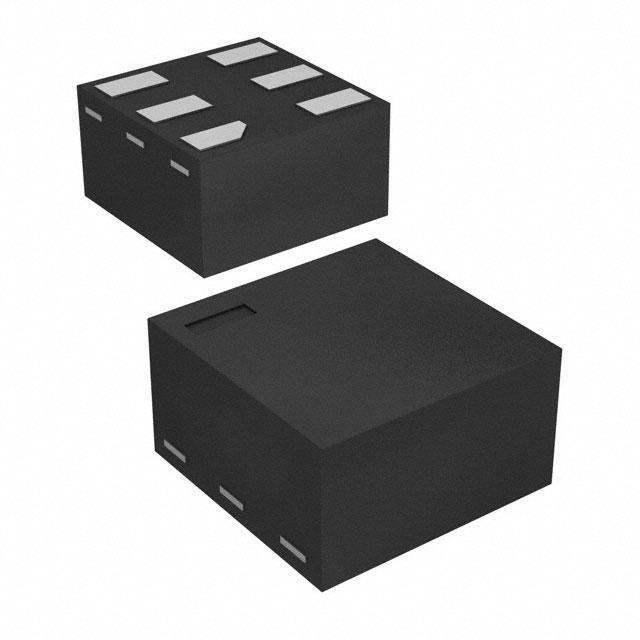

• Compact Packaging: Housed in a space-saving SC70-6 package, the NC7WZ07FHX is designed for minimal footprint on printed circuit boards (PCBs).

Applications

The NC7WZ07FHX is suitable for a wide range of applications, including but not limited to:

• Signal buffering in high-speed data paths
• Level shifting for multi-voltage systems
• Driving heavy loads with its high output drive capability
• Use in portable devices due to its low power consumption

ON Semiconductor's commitment to quality ensures that the NC7WZ07FHX dual buffer is a reliable and efficient choice for designers looking to optimize their digital systems. Its combination of high-speed operation, low power, and compact form factor makes it a valuable component in any modern electronic design.
