ON Semiconductor NC7WZ07P6 Product Overview

The ON Semiconductor NC7WZ07P6 is a high-performance, dual buffer with open drain outputs, belonging to the TinyLogic UHS (Ultra High Speed) series. This integrated circuit is designed for optimal operation in today's demanding digital circuits, where space constraints and power efficiency are of paramount importance.

Key Features:

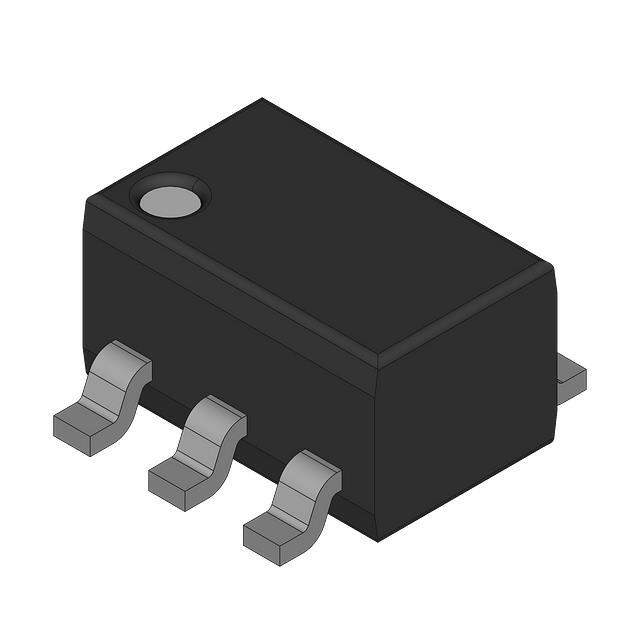

• Package: The product comes in a compact P6 microPak package, making it an ideal choice for space-constrained applications.
• Logic Type: It features a dual non-inverting buffer with open drain outputs, providing a versatile logic function that can be used in a wide range of applications.
• High-Speed Operation: As part of the UHS series, the NC7WZ07P6 is designed for ultra-high-speed operation, ensuring fast signal propagation and minimal propagation delay.
• Power Supply: It operates over a broad voltage range of 1.65V to 5.5V, making it compatible with various logic levels and suitable for battery-operated devices.
• Current Drive: The device has the ability to drive up to 24mA at the outputs, providing sufficient current for most low-power applications.
• Power Down Protection: It includes power down protection on inputs, which helps prevent erroneous operation when the device is in an off or standby state.
• Temperature Range: The operating temperature range is from -40°C to +85°C, ensuring reliable performance across a wide range of environmental conditions.

Applications:

The NC7WZ07P6 is versatile enough to be used in various digital applications, including but not limited to:

• Portable and battery-powered electronics
• Computing devices such as laptops and tablets
• Signal buffering in communication systems
• Level shifting for multi-voltage systems
• Interface circuitry between different logic families

ON Semiconductor's commitment to quality and performance is evident in the NC7WZ07P6, making it a reliable choice for designers looking to optimize their digital systems with robust and efficient logic solutions.
