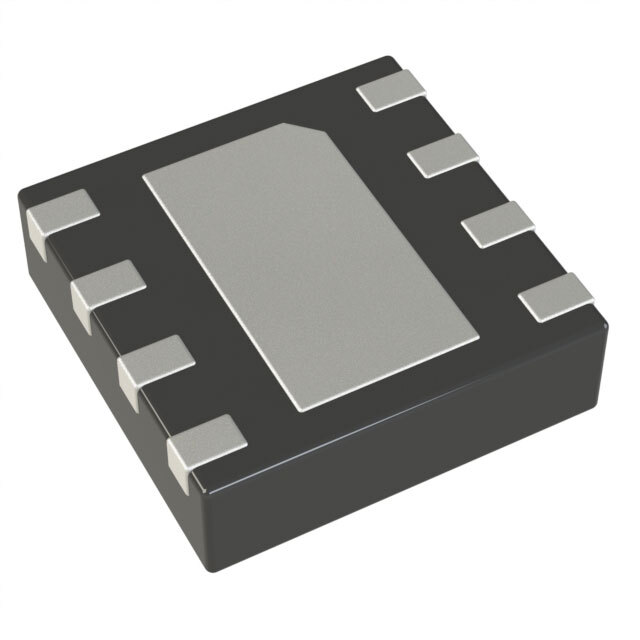

Same model may have multiple batches, images only for reference.
NCP114AMX250TBG ON Semiconductor – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

NCP114AMX250TBG

Part No NCP114AMX250TBG
Manufacturer ON Semiconductor
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 2.5V 300MA 4-UDFN
Datasheet
NCP114AMX250TBG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 2.5V
Current - Output 300mA
Current - Quiescent (Iq) 95 µA
PSRR 75dB (1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Case / Package 4-UDFN Exposed Pad
Supplier Device Package 4-UDFN (1.0x1.0)
Package Tape & Reel
Supply and Demand Status Normal
Win Source Part Number 1503756-NCP114AMX250TBG
Ultra Librarian 3D Model Ultra Librarian NCP114AMX250TBG CAD Model

Description

N
