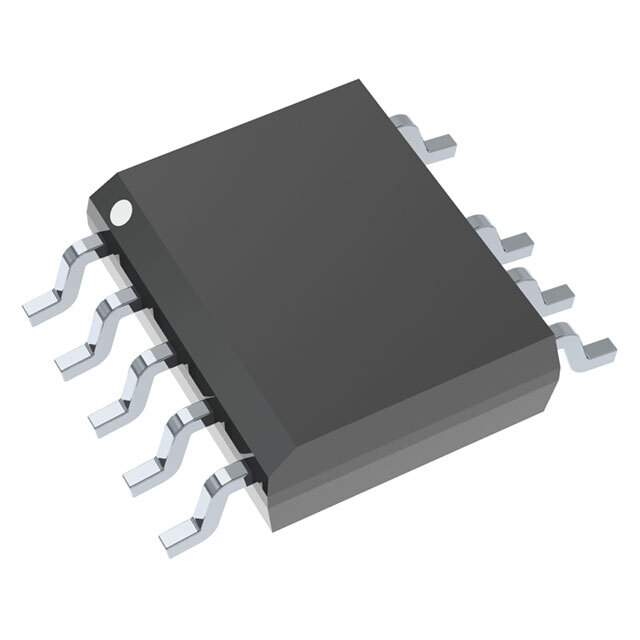

The NCP1342ANACED1R2G is a high-performance AC-DC controller from ON Semiconductor, designed to provide efficient power conversion for a variety of applications. This advanced component is a part of ON Semiconductor's extensive portfolio of energy-efficient power management devices, offering innovative solutions for power supply design.

Key Features

• Quasi-Resonant Operation: The NCP1342ANACED1R2G utilizes a quasi-resonant mode of operation which minimizes switching losses and improves overall efficiency. This mode allows for soft-switching, reducing electromagnetic interference (EMI) and extending the life of the device.
• Frequency Jittering: To further reduce EMI, the controller includes frequency jittering. This feature spreads the energy over a wider spectrum, minimizing the peak emissions and helping to meet stringent EMI regulations.
• High-Voltage Startup: The device incorporates a high-voltage startup circuit, enabling it to quickly and efficiently begin operation directly from the high-voltage line input. This eliminates the need for an additional standby power supply and reduces system complexity.
• Adjustable Overcurrent Protection: The NCP1342ANACED1R2G features an adjustable overcurrent protection mechanism, safeguarding the power supply and the load from excessive current conditions.
• Brown-Out Protection: This controller is designed with brown-out protection, ensuring stable operation during power sags, thereby preventing damage to the power supply and the connected load.
• Auto-Recovery Fault Protection: The NCP1342ANACED1R2G includes comprehensive fault protection with auto-recovery. This feature allows the device to resume normal operation after fault conditions are cleared, improving system reliability.

Applications

The NCP1342ANACED1R2G is ideal for a range of applications where efficient power conversion is critical. These include:

• AC-DC adapters for laptops and personal electronics
• Offline battery chargers
• Standby and auxiliary power supplies
• LED lighting drivers

With its robust feature set and ON Semiconductor's commitment to quality, the NCP1342ANACED1R2G is a smart choice for designers looking to create compact, efficient, and reliable power supply solutions.
