The NCP1343BADBDEAD1R2G is a cutting-edge PWM controller integrated circuit (IC) from ON Semiconductor, designed to offer an efficient and robust solution for power supply applications. This versatile component is ideal for AC-DC adapters, offline battery chargers, and auxiliary power supplies, where energy efficiency and compactness are of paramount importance.

Featuring a fixed-frequency current-mode operation, the NCP1343BADBDEAD1R2G ensures stable and reliable performance. The IC incorporates an array of features intended to enhance the system's efficiency and to provide protection under a variety of conditions. Its built-in high-voltage startup circuit ensures quick and energy-efficient activation of the controller, which is particularly useful in reducing standby power consumption.

The NCP1343BADBDEAD1R2G also boasts an array of safety features, including brown-out protection, which guards the power supply against undervoltage conditions, and a frequency foldback mechanism that reduces the switching frequency under light-load conditions, further improving efficiency. Overcurrent and overvoltage protections are integrated to safeguard the IC and the system it controls from potential damage due to abnormal operating conditions.

ON Semiconductor's attention to detail is evident in the NCP1343BADBDEAD1R2G's design, which features an adjustable dead time that allows for optimization of efficiency across different load conditions. The soft-start function minimizes inrush current during startup, contributing to the longevity of the power supply and the end application.

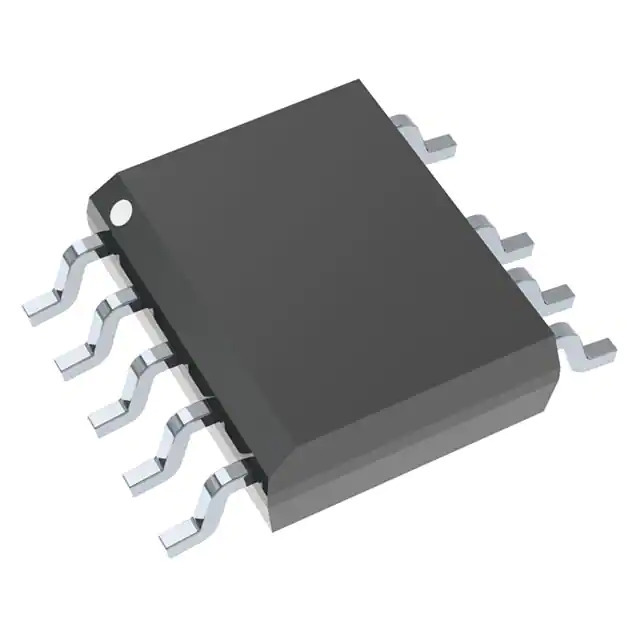

The NCP1343BADBDEAD1R2G is available in a compact SOIC-7 package, offering a space-saving solution without compromising performance. With its advanced features and ON Semiconductor's reputation for quality and reliability, this PWM controller IC is an excellent choice for designers seeking to create efficient, robust, and compact power supply systems.
