The ON Semiconductor NCP691MN33T2G is a high-performance low dropout voltage regulator (LDO) designed for applications requiring a stable and reliable power supply. This LDO is capable of delivering a continuous output current of up to 1A with an input voltage range of 2.5V to 5.5V, making it ideal for a wide range of electronic devices.

Key Features:

• Output Voltage: This regulator provides a fixed output voltage of 3.3V, which is a common requirement for digital circuits and microcontroller-based systems.
• High Accuracy: The output voltage accuracy is ±1%, ensuring precise voltage regulation for sensitive electronic components.
• Low Dropout: The NCP691MN33T2G features a low dropout voltage, typically 125mV at 1A load, which enhances efficiency and allows operation with minimal input-to-output voltage differential.
• Thermal Protection: It includes an over-temperature protection circuit that shuts down the regulator to prevent damage from excessive heat.
• Current Limit Protection: The built-in current limit protection safeguards the device and the load from overcurrent conditions.
• Fast Transient Response: This LDO regulator offers a fast transient response, making it suitable for applications with rapid load changes.
• Low Quiescent Current: The device consumes low quiescent current, which is beneficial for battery-powered applications to extend battery life.

Applications:

The NCP691MN33T2G is versatile and can be used in various applications, including:

• Portable and battery-powered devices
• Microcontrollers and digital processors
• Wireless communication systems
• Power supplies for cameras and RF circuits
• Automotive electronics

Package Information:

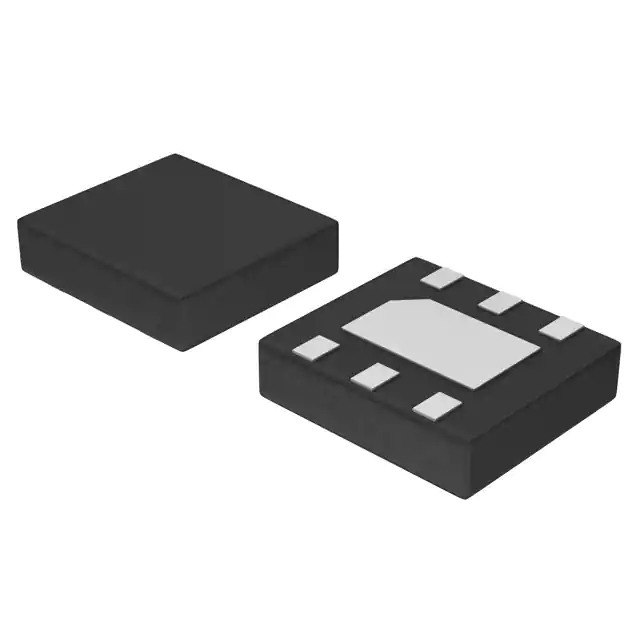

This LDO voltage regulator is available in a compact, surface-mount DFN6 package, which is RoHS compliant and designed for space-constrained applications.

Conclusion:

The ON Semiconductor NCP691MN33T2G LDO voltage regulator is an efficient and reliable solution for maintaining a stable power supply in electronic systems. Its comprehensive protection features and low power consumption make it an excellent choice for designers looking to enhance the performance and longevity of their products.
