ON Semiconductor NCP693DMN10TCG Overview

The ON Semiconductor NCP693DMN10TCG is a high-performance, fixed output voltage, low-dropout (LDO) regulator designed to deliver a continuous 1.0A of output current. This robust component is ideal for powering sensitive analog and digital circuits in various applications, including portable devices, wireless communication equipment, and embedded systems.

Key Features

• Output Voltage: The device provides a stable and precise 1.0V output, which is essential for maintaining the performance of the connected load.
• High Output Current: With the ability to supply up to 1.0A, this LDO can support a wide range of power requirements for different electronic components.
• Low Dropout Voltage: The low dropout feature ensures efficient operation even when the input voltage is close to the output voltage, reducing power losses and improving battery life in portable applications.
• Thermal Protection: The built-in thermal shutdown mechanism protects the device from overheating, ensuring reliability and longevity.
• Current Limit Protection: The current limit feature safeguards the regulator and the load from damage due to excessive current.
• Wide Operating Temperature Range: This LDO can operate over a broad temperature range, making it suitable for industrial applications with challenging environmental conditions.

Applications

The NCP693DMN10TCG is versatile and can be used in various applications where stable voltage and efficient power management are critical. Its common applications include:

• Battery-powered devices
• Portable media players
• Wireless LAN cards
• Smartphones and tablets
• Embedded systems
• Microcontroller power supplies

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the NCP693DMN10TCG is no exception. This LDO regulator is designed to meet the stringent requirements of modern electronic devices, ensuring stable operation and a reliable power source for critical applications.

Packaging and Availability

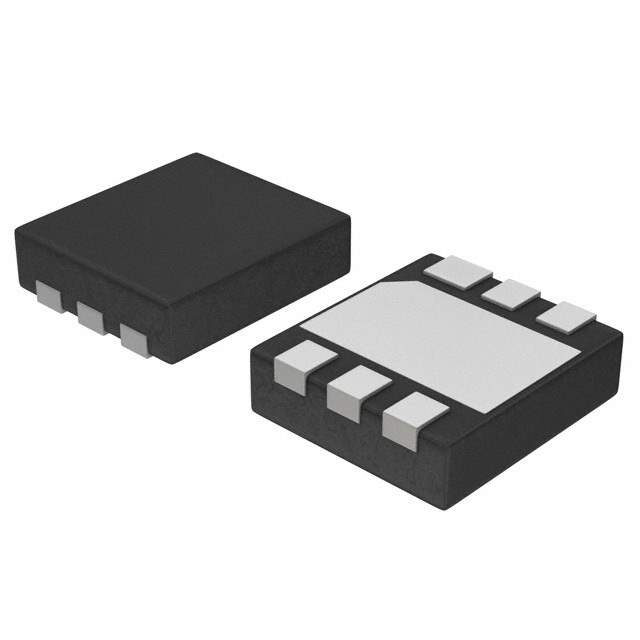

The NCP693DMN10TCG comes in a compact, surface-mount package that is suitable for automated assembly processes, facilitating efficient manufacturing and integration into various electronic systems. Check with authorized distributors for availability and bulk ordering options.
