ON Semiconductor NCP700BMT28TBG Overview

The ON Semiconductor NCP700BMT28TBG is a high-performance, low dropout voltage regulator designed to deliver a stable and reliable power supply in a wide range of applications. This regulator features a fixed output voltage of 2.8V, making it ideal for powering sensitive electronic circuits that require a precise voltage level for optimal performance.

Key Features

• Stable Output Voltage: The NCP700BMT28TBG provides a fixed 2.8V output, ensuring a stable voltage supply for critical components.
• Low Dropout Voltage: The device's low dropout voltage allows it to continue delivering a regulated output even when the supply voltage is close to the output voltage, maximizing efficiency.
• High Accuracy: With excellent line and load regulation, the voltage regulator maintains high accuracy under varying conditions.
• Low Quiescent Current: The low quiescent current minimizes power consumption when the device is in standby mode, making it suitable for battery-powered applications.
• Thermal Protection: Built-in thermal shutdown protection ensures the device operates within safe temperature limits, preventing damage from overheating.
• Current Limiting: The current limiting feature protects the regulator and the load from excessive current draw, enhancing system reliability.

Applications

The NCP700BMT28TBG is versatile and can be used in a variety of electronic devices, including but not limited to:

• Portable and battery-powered devices
• Microcontroller power supplies
• Wireless communication equipment
• Audio and video equipment
• Healthcare and medical devices

Package and Quality

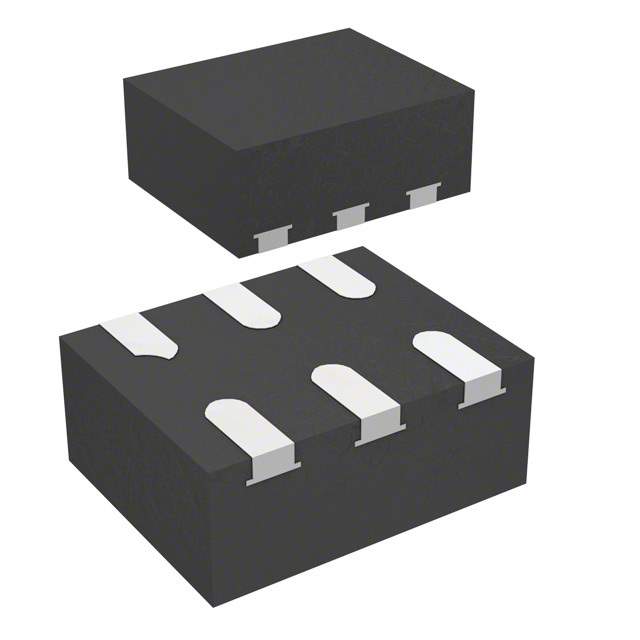

Packaged in a compact, surface-mount DFN6 2x2, the NCP700BMT28TBG is designed for space-constrained applications. The device also complies with ON Semiconductor's commitment to quality, ensuring high reliability and performance for the end-user.

In summary, the ON Semiconductor NCP700BMT28TBG voltage regulator is an excellent choice for designers looking for a reliable and efficient power management solution that occupies minimal board space and is suitable for a wide range of applications.
