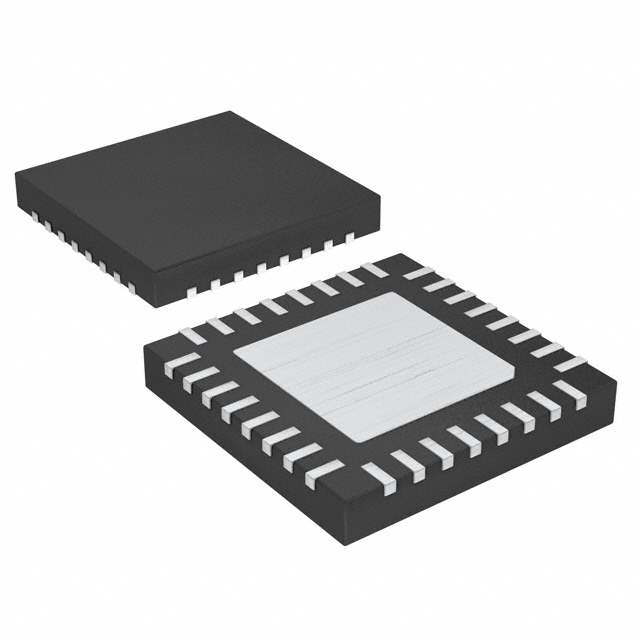

NCV70514MW003R2G

Part No NCV70514MW003R2G
Manufacturer ON Semiconductor
Catalog PMIC - Motor Drivers, Controllers
Description IC STEPPER MOTOR DRIVER 32QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Motor Drivers, Controllers
Mfr ON Semiconductor
Package Tape & Reel
Product Status Active
Motor Type - Stepper Bipolar
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface SPI, Step/Direction
Technology Power MOSFET
Step Resolution 1 ~ 1/32
Applications General Purpose
Voltage - Supply 6V ~ 29V
Voltage - Load 0V ~ 5.5V
Temperature Range - Operating -45°C ~ 145°C (TJ)
Mounting Type Surface Mount, Wettable Flank
Package / Case 32-VFQFN Exposed Pad
Supplier Device Package 32-QFNW (5x5)
Base Product Number NCV70514
Standard Package 5,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 832442-NCV70514MW003R2G
Ultra Librarian 3D Model Ultra Librarian NCV70514MW003R2G CAD Model

Description

ON Semiconductor NCV70514MW003R2G Overview

The NCV70514MW003R2G from ON Semiconductor is a highly integrated and versatile motor driver designed for automotive applications, particularly for the precise control of small motors within the vehicle. This compact and robust product is engineered to meet the demanding requirements of automotive environments, providing reliable performance for a wide range of applications such as mirror adjustment, headlight leveling, and HVAC flaps actuation.

Key Features

  • High Integration: The NCV70514MW003R2G integrates a motor driver, LIN transceiver, and voltage regulator in a single package, reducing the number of components required on the PCB and simplifying the design process.
  • Multiple Motor Control Modes: It supports H-Bridge, high-side, and low-side control modes, offering flexibility in controlling different types of motors and loads.
  • Embedded LIN Transceiver: An integrated LIN 2.1 and SAE J2602 compliant transceiver ensures robust communication in automotive networks, allowing for easy integration into vehicle systems.
  • Advanced Protection Features: The device includes overcurrent, overtemperature, and undervoltage lockout protection, safeguarding the motor and associated electronics from potential damage.
  • Programmable Parameters: Users can program various parameters, such as the PWM frequency and slew rate, to optimize the motor performance for specific applications.

Applications

Designed for automotive use, the NCV70514MW003R2G can be employed in a variety of applications where precise motor control is required. Its robust design and integrated features make it an ideal choice for:

  • Power mirrors adjustment and folding
  • Headlight beam leveling
  • Active grille shutters
  • HVAC flap control

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the NCV70514MW003R2G is no exception. It is designed to meet the stringent specifications of the automotive industry, ensuring high reliability and performance under a wide range of operating conditions. With its advanced features and robust design, the NCV70514MW003R2G is a smart choice for developers looking to implement efficient and dependable motor control solutions in their automotive designs.
