The ON Semiconductor NCV8730BMTW500TBG is a high-performance, low-dropout (LDO) linear voltage regulator designed for automotive and industrial applications. This robust component is engineered to deliver a stable and reliable power supply, ensuring optimal performance for sensitive electronic devices.

Key Features

• Output Voltage: This device offers a fixed output voltage of 5.0V, which is ideal for powering standard logic levels and microcontroller-based systems.
• High Accuracy: The voltage regulator maintains a high level of accuracy, with a typical output voltage tolerance of ±2%, ensuring reliable operation of the connected load.
• Current Capability: With an ability to supply up to 150 mA of output current, this LDO can support a wide range of applications that require moderate power levels.
• Low Dropout Voltage: The NCV8730BMTW500TBG is designed to operate with a very low dropout voltage, which enhances its efficiency and allows it to function effectively even in conditions where the input voltage is close to the output voltage.
• Thermal Protection: The device includes an over-temperature protection feature that safeguards it and the application from damage due to excessive heat.
• Short Circuit Protection: Built-in short circuit protection ensures that the regulator and the downstream circuitry are protected from potential damage in the event of a fault condition.
• Wide Operating Temperature Range: This LDO is capable of operating over a broad temperature range, making it suitable for harsh environments.
• Automotive Qualified: The NCV8730BMTW500TBG meets the stringent requirements of automotive applications and is qualified for use in such environments.

Applications

The NCV8730BMTW500TBG is versatile and can be used in a variety of applications, including but not limited to automotive infotainment systems, body control modules, sensors, and power management solutions in industrial settings.

Package and Reliability

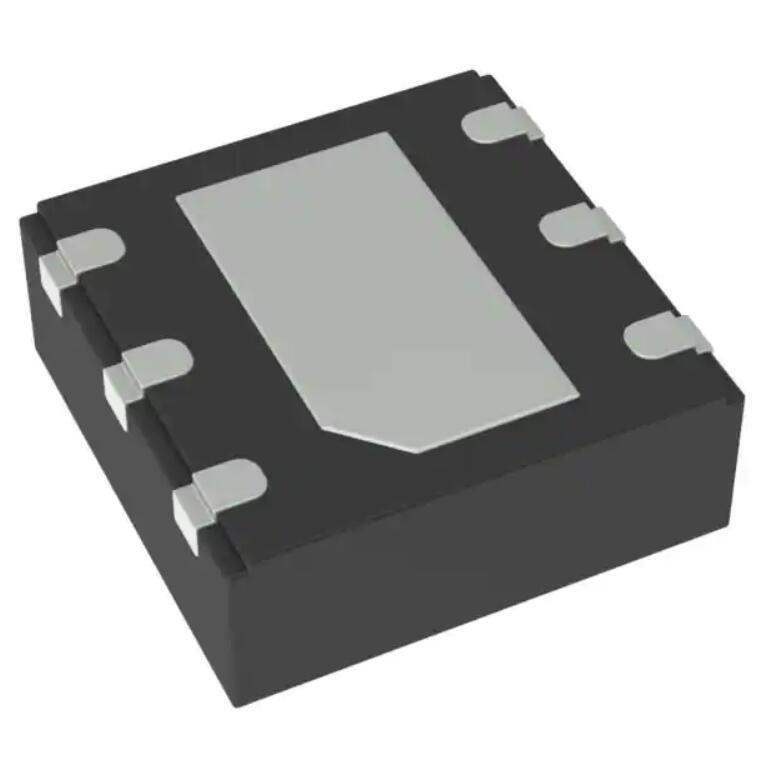

This LDO voltage regulator is available in a compact, surface-mount package that is suitable for space-constrained applications. Its robust design ensures long-term reliability, making it a preferred choice for designers looking for a dependable power management solution.
