The NL17SZ32DBVT1G is a high-performance, single 2-input OR gate from ON Semiconductor, designed to meet the demands of modern electronics with its compact form factor and low power consumption. Manufactured with advanced silicon gate CMOS technology, it offers a perfect solution for voltage translation applications when interfacing with different logic levels ranging from 1.65V to 5.5V.

Key Features

• Logic Type: OR Gate
• Number of Circuits: 1
• Number of Inputs: 2
• Supply Voltage Range: 1.65V to 5.5V
• Output Current: High 32 mA, Low 32 mA
• Propagation Delay Time: 4.5ns at 5V, 3.3ns at 3.3V, and 2.6ns at 2.5V
• Operating Temperature: -55°C to +125°C
• Mounting Type: Surface Mount

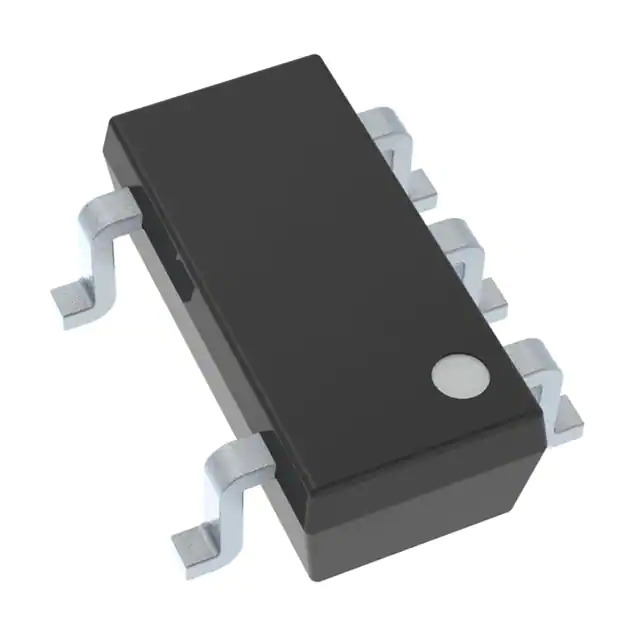

• Package / Case: SC-74A, SOT-753

Applications

The NL17SZ32DBVT1G is versatile and can be used in various applications, including:

• Smartphones
• Personal computers
• Portable devices
• Embedded systems
• Signal processing
• Control systems

Advantages

This OR gate IC is designed for optimized power management and space-saving on PCBs. The NL17SZ32DBVT1G offers several advantages for designers:

• High-Speed Operation: Fast propagation delay ensures efficient processing and signal transition.
• Low Power Dissipation: Ideal for battery-powered and low-energy applications.
• Wide Voltage Range Compatibility: Flexible interfacing with various logic levels without the need for additional components.
• Compact Footprint: Its small size SC-74A, SOT-753 package is excellent for space-constrained applications.

Quality and Reliability

ON Semiconductor is committed to the highest standards of quality and reliability, and the NL17SZ32DBVT1G is no exception. It is designed to meet stringent industry standards, ensuring long-term performance and stability in a wide range of environmental conditions.
