ON Semiconductor NL3S2223MUTBG Overview

The NL3S2223MUTBG from ON Semiconductor is a high-performance, compact dual SPDT (Single Pole Double Throw) analog switch designed for a wide range of applications. This versatile component is ideal for signal switching in consumer, medical, and industrial devices due to its low on-resistance and high current handling capability.

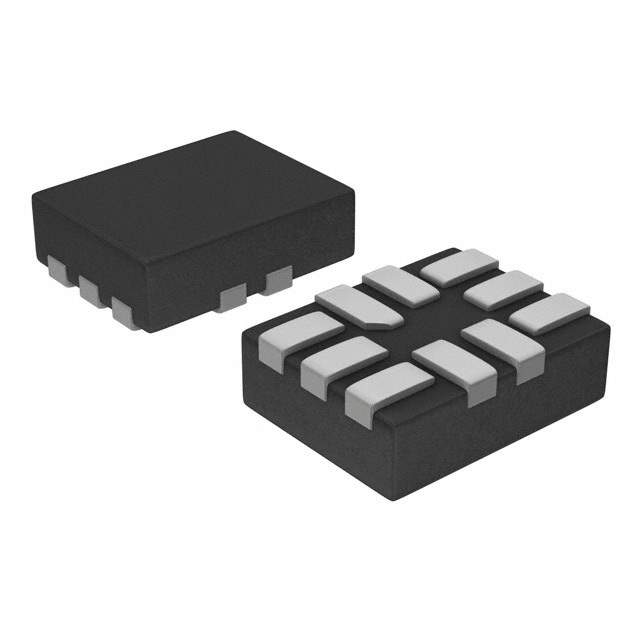

The switch operates over a broad voltage range from 1.65V to 5.5V, making it suitable for portable and battery-powered equipment. It also features a low threshold voltage that allows for direct interfacing with low-voltage control logic, adding to its flexibility in various circuit designs. With its ultra-small footprint in a 12-bump UDFN package (1.2mm x 1.2mm x 0.5mm), the NL3S2223MUTBG is perfect for space-constrained applications.

Key Features

• Low On-Resistance: The switch provides a low on-resistance (typically 0.5 Ohms), ensuring minimal signal distortion and power loss.
• High Current Handling: Capable of handling high continuous current up to 300 mA per channel, making it suitable for a variety of high-performance applications.
• Wide Voltage Range: With an operating voltage range of 1.65V to 5.5V, it can be used in many different circuit environments.
• Low Power Consumption: The device features low power consumption, which is crucial for extending battery life in portable devices.
• Bidirectional Signal Flow: Signals can flow in both directions through the switch, providing design flexibility.
• ESD Protection: Integrated ESD protection diodes help to safeguard the device from electrostatic discharge events.
• Ultra-Compact Package: The UDFN package is designed for minimal space usage, which is essential in modern, densely packed electronic assemblies.

Applications

The ON Semiconductor NL3S2223MUTBG is suitable for a variety of applications including but not limited to audio signal routing, data acquisition systems, battery-powered devices, multiplexing and demultiplexing applications, and portable medical devices. Its robust design and high reliability make it an excellent choice for designers looking to optimize their system performance while conserving board space.
