ON Semiconductor NLAS3799LMNR2G

The NLAS3799LMNR2G is a high-performance, dual SPDT (Single Pole Double Throw) analog switch from ON Semiconductor, designed to deliver efficient and reliable switching capabilities for a diverse range of applications. Manufactured with advanced sub-micron silicon gate CMOS technology, this component is a testament to ON Semiconductor's commitment to providing innovative solutions that meet the evolving needs of the electronics industry.

Key Features

• Low On-Resistance: The switch features a low on-resistance of typically 0.5 ohms at 4.5V, which ensures minimal signal distortion and power loss during operation.
• Wide Voltage Range: It operates over a broad voltage range from 1.65V to 4.5V, making it suitable for use in battery-powered devices and accommodating various logic levels.
• High Current Handling: The device can handle continuous current up to 300 mA, allowing for the efficient switching of higher current signals.
• Fast Switching Speeds: With fast turn-on and turn-off times, the NLAS3799LMNR2G ensures quick response times, which is crucial for high-speed signal switching.
• ESD Protection: It includes built-in ESD protection diodes that safeguard the device against electrostatic discharge events, enhancing its durability and reliability.

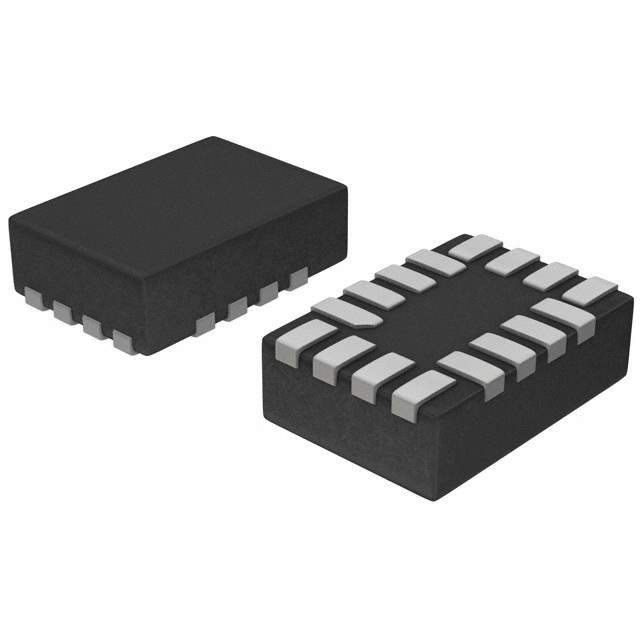

• Space-Saving Package: The analog switch is available in a micro-miniature, ultra-thin dual flat no-lead package (µDFN), which is ideal for space-constrained applications.

Applications

ON Semiconductor's NLAS3799LMNR2G is versatile and can be used in a wide array of applications, including but not limited to:

• Cellular phones
• PDAs and portable devices
• Power routing
• Audio and video signal routing
• Data acquisition systems
• Communication systems

With its robust design and high-performance features, the NLAS3799LMNR2G is an excellent choice for designers looking for a reliable switch to integrate into their electronic circuits. ON Semiconductor's quality and support further enhance the value of this component, making it a go-to option for a multitude of switching applications.
